ISO 9001 24 Core All Dielectric Self Supporting Fiber Optic Cable

Descrição de produto

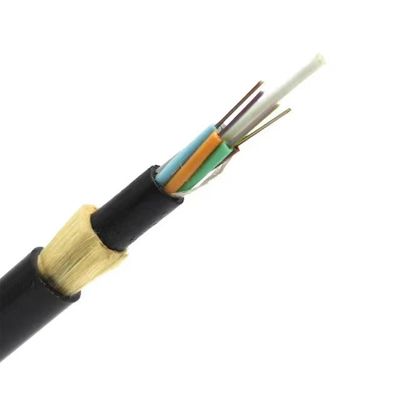

24 Core All Dielectric Self-Supporting Double Sheath Fiber Optical Cable ADSS

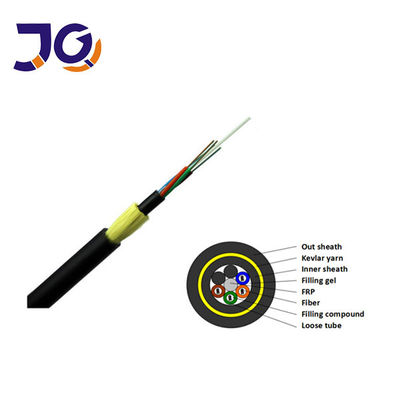

The ADSS optical cable adopts a loose tube stranded structure. The 250µm optical fiber is sheathed in a loose tube made of high modulus material,

and the loose tube is filled with waterproof compound. The loose tube (and the filling rope) is twisted around the non-metallic central reinforcement core (FRP) to form a compact cable core, and the gaps in the cable core are filled with water blocking grease. The cable core is extruded into a polyethylene (PE) inner sheath, then stranded to strengthen the aramid fiber, and finally it's completed by the polyethylene (PE)

The design of ADSS optical cable fully considers the actual situation of power lines and is suitable for different levels of high-voltage power transmission lines. For 10kV and 35kV power lines, polyethylene (PE) sheath can be used; for 110kV and 220kV power lines, the cable hanging point must be determined by calculating the electric field intensity distribution and the electric tracking (AT) outer sheath must be used. At the same time, the amount of aramid fiber and the perfect stranding process are carefully designed to meet the application requirements of different spans.

Features

• Can be installed without cutting off the power

• Light weight and small cable diameter, reducing the impact of ice, wind and the load on the tower and support

• Large span, the maximum span is more than 1000 meters

• Has excellent tensile properties and temperature characteristics

• Life expectancy 30 years

Structure and Technical Specifications ADSS-SJ(50-150M)

Structure and Technical Specifications ADSS-DJ(50-750M)

Optical characteristic

Application: Self-supporting overhead

FAQ

1,Q:Are you a factory or trade company?
A:We are a factory

2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc

4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6.Can you supply customized products and logo?

A:Yes. We supply OEM service.

7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
