Cabo de fibra ótica aéreo exterior do canal GYFTY do núcleo do OEM 144
Pessoa de Contato : Philip
Número de telefone : +8613422342788
Whatsapp : +8613422342788
| Quantidade de ordem mínima : | 1km | Detalhes da embalagem : | Cilindro de madeira |
|---|---|---|---|
| Tempo de entrega : | 3-5 dias | Termos de pagamento : | L/C, T/T, Western Union, Alipay |
| Habilidade da fonte : | 4500km pelo mês |
| Número do modelo: | GYXTC8S |
|---|
|
Informação detalhada |
|||
| Lugar de origem: | GuangZhou, China | Marca: | Jiqian |
|---|---|---|---|
| Certificação: | ISO 9001 | Aplicação: | Aéreo |
| Bainha do revestimento: | PE | fabricante: | sim |
| Escala da fibra: | 2-12 núcleos | Tipo da fibra: | Fiberhome/YOFC |
| Realçar: | GYXTC8S Aerial Fiber Cable,5km Aerial Fiber Cable,5km Figure 8 Fiber Cable |
||
Descrição de produto

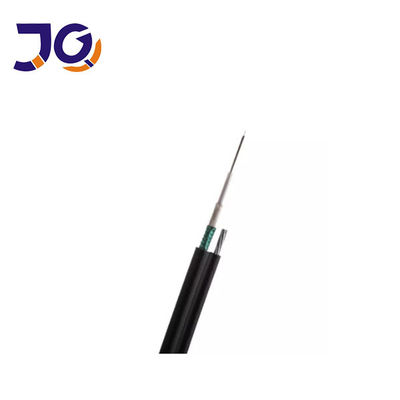

Outdoor Figure 8 GYXTC8S Fiber Optic Cable Used For Aerial Installation
GYXTC8S Self-supported figure 8 optical cable with fibers placed in jelly filled loose buffer tube stranded around dielectric central member. The cable core is protected with jelly or waterblocking material to prevent water intrusion and migration, protected with a corrugated steel tape armor. All whole unit and galvanized steel messenger are covered with black polyethylene outer jacket.
Applications
Long distance and local area network(LAN) communication.
Aerial & conduit / duct application.
Features
Central loose tube with jelly compound inside to protect the cladding fiber.
Corrugated steel tape laminated with plastic at both sides bonding to PE sheath.
Good mechanical and temperature resistant performance.
The cross-section in fig8 structure.
Crush resistance and flexibility.
Light weight and small diameter, easy to installation and operation.
Cable Parametres
| Fiber Count | 2-12 FO | |
| Fiber Type | SM G652D or multimode | |
| Messenger Wire | 1.6mm steel | |
| Loose Tube | PBT (2.0mm) | |
| Jacket | PE / LSZH | |
| Outer Diameter | 3.2*6.3mm | |
| Color | Black, customized | |
| Length | 1-5km per wooden drum | |
Optical fiber characteristics
| Fiber style | Unit | SM G652D | MM 50/125 | MM 62.5/125 |
| Condition | mm | 1310/1550 | 850/1300 | 850/1300 |
| Attenuation | dB/km | ≤0.36/0.22 | ≤3.0/1.0 | ≤3.0/1.0 |
| Cladding diameter | um | 125±1 | 125±1 | 125±1 |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 |
| Coating diameter | um | 242±7 | 242±7 |
242±7 |
FAQ:
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
