Cabo de fibra ótica do canal de GYTS 24core
Pessoa de Contato : Philip
Número de telefone : +8613422342788
Whatsapp : +8613422342788
Quantidade de ordem mínima : | 1km | Detalhes da embalagem : | 1/2/3/4/5 de quilômetro em um cilindro de madeira |
---|---|---|---|
Tempo de entrega : | 3-5dryas | Termos de pagamento : | L/C, T/T, Western Union |
Habilidade da fonte : | 4500km pelo mês |
Lugar de origem: | GuangZhou China | Marca: | JQ/OEM |
---|---|---|---|
Certificação: | ISO9001 ROHS CE-EMC FCC SDOC | Número do modelo: | GYXTW |
Informação detalhada |
|||
Material do revestimento: | PE | Diâmetro exterior: | 6/7/8mm |
---|---|---|---|
Fio de aço: | 0.7/0.8/1.0mm | Cor: | PRETO |
Contagem da fibra: | 2/4/6/8/12/24 de núcleo | estrutura: | Cabo fraco central do tubo |
Membro de força: | Fio dois de aço | a instalação: | &Duct aéreo |
Nome do produto: | Cabo ótico exterior da fibra | Tipo da fibra: | único modo ou multi modo |
Oem: | Disponível | Temperatura de funcionamento: | -40 ~ +60 C |
Realçar: | Cabo de fibra ótica do canal de GYXTW,cabo de fibra ótica do único modo do núcleo de GYXTW 24,cabo de fibra ótica do único modo do núcleo de GYXTW 12 |
Descrição de produto
Single Mode 4 6 8 12 24 Core GYXTW Fiber Optic Cable For Duct Laying

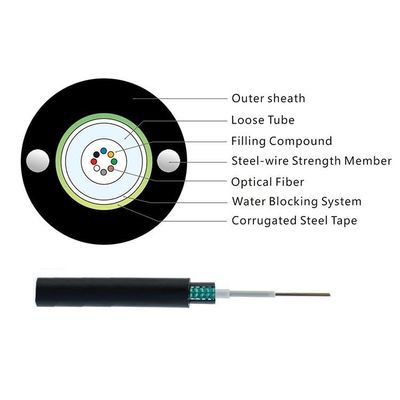

The 250μm fiber is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The parallel steel wires are placed at the two sides tape. The cable is completed with a polyethylene (PE) sheath.
Features
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
PSP enhancing moisture-proof
Two parallel steel wires ensure tensile strength
Small diameter, light weight and friendly installation
Optical Characteristics
Items | Unit | Specification | |
G652D | |||
Mode Field Diameter | 1310nm | um | 9.2±0.4 |
1550nm | um | 10.4±0.5 | |
Cladding Diameter | um | 124.8±0.7 | |
Cladding Non-Circularity | % | ≤0.7 | |
Core-Cladding Concentricity Error | um | ≤0.5 | |
Coating Diameter | um | 245±5 | |
Coating Non-Circularity | % | ≤6.0 | |
Cladding-Coating Concentricity Error | um | ≤12 | |
Cable Cutoff Wavelength | nm | acc≤1260 | |
Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
1550nm | dBkm | ≤0.22 |
Cable Parameters
Items | Specifications | |
Fiber Count | 2~24 | |
Colored Coating Fiber | Dimension | 250μm+15μm |
Color | Blue,Orange,Green,Brown,Gray,White | |
Loose Tube | Dimension | 2.0mm±0.05mm |
Material | PBT | |
Color | Natural | |
Strength Member | Diameter | 1.0mm |
Material | Steel | |
Outer Jacket | Dimension | 8.0mm±0.1mm |
Material | PE | |
Color | Black |
Technical Parameters
Fiber Count |
Cable Diameter(mm) |
Cable Weight kg/km) |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N/100mm) |
Bending Radius Static/Dynamic |
2~12 | 8 | 78 | 1000/3000 | 1000/3000 | 10D/20D |
14~24 | 10 | 90 | 1000/3000 | 1000/3000 | 10D/20D |

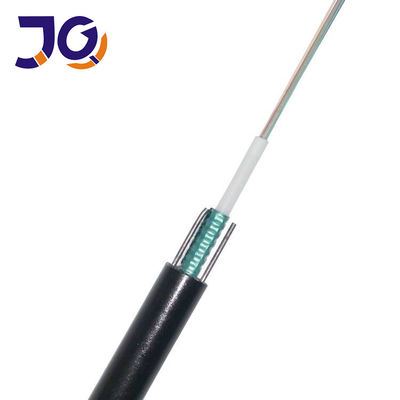

Product Image
Application
Usable in Duct / Aerial
Storage / Operating Temperature: -40℃~+70℃
Packing&Delivery
1/2/3/4/5 km in one wooden drum,deliver days:5-8work days
