GYTA Armored Fiber Optic Cable 2-144 Core Outdoor Loose Tube for Aerial & Duct

1 quilômetro
MOQ
GYTA Armored Fiber Optic Cable 2-144 Core Outdoor Loose Tube for Aerial & Duct
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Tipo: Cabo de fibra óptica ao ar livre
Lugar de origem: Guangdong, China
Tipo de fibra: G652D Modo único ou como seu pedido
Contagem de fibras: 2-144 núcleos
Comprimento: personalizado
Cor: personalizado
Tubo: Tubos de múltiplos lâminas
Membro da Força Central: Fio de aço
Blindado: Fita de aço blindada
Bainha externa: PE/ HDPE/ MDPE ou como seu pedido
Pacote: Tambor de madeira
Aplicativo: Enterro aéreo, sobrecarga/ direto
OEM: Disponível
Temperatura operacional: -40°C~+70°C
Cor da jaqueta: Preto
Material: PE/HDPE/MDPE
Comprimento padrão: 2,000m/4000m
Armadura: Faixa de aço+Faixa Al
Material da fibra: YOFC/ Corning/ Fibrehome
Número de fibras: 24f
Preenchimento: Composto de enchimento
Material da bainha externa: MDPE / HDPE / PE
Membro da força: Fio de aço
Certificados: CCC ISO9001, CE, TLC
Jaqueta: PE, MDPE, LSZH, PVC
Resistência a UV: Sim
Resistência à tracção: 1000N/1500N/2000N/2500N/3000N
Destacar:

GYTA armored fiber optic cable

,

outdoor loose tube fiber cable

,

144 core aerial duct cable
Informação básica
Lugar de origem: Guangdong ， China
Marca: JQ/OEM/Customize
Certificação: CE/ISO9001/RoHS/FCC
Número do modelo: Gyta 12Core/24Core/48Core
Condições de Pagamento e Envio
Detalhes da embalagem: Tambor de madeira
Tempo de entrega: 2-5 dias
Termos de pagamento: L/C, D/A, D/P, T/T, Western Union
Habilidade da fonte: 8000 quilômetros por mês
Descrição de produto

GYTA Armored Outdoor Fiber Optic Cable – Aluminum Tape Moisture Protection

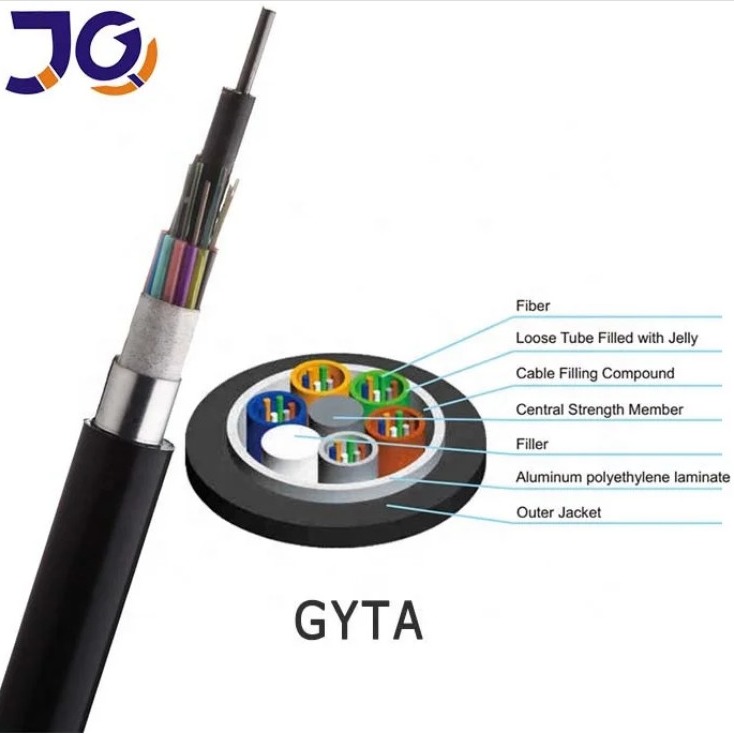

The GYTA cable is built with stranded loose tubes around a central strength member, creating a stable and compact core. The core is wrapped with aluminum-polyethylene laminate, tightly bonded to a PE inner sheath to block both longitudinal and radial moisture. For extra protection, corrugated steel tape laminated with polyethylene is applied, and a durable MDPE outer jacket is extruded under strict conditions.

GYTA is ideal for aerial and duct installations in long-distance telecom networks. The “A” represents the aluminum tape layer, which delivers excellent corrosion and moisture resistance, making it a better choice than steel-tape designs for duct environments.

Key Features & Benefits

  • High Strength & Durability – Excellent tensile and crush resistance for demanding environments.

  • Reinforced Central Member – Phosphatized steel wire core, optionally PE-coated for extra flexibility and corrosion protection.

  • Superior Water Blocking – Loose tubes and cable core are fully filled with water-blocking gel to prevent longitudinal water ingress.

  • Effective Moisture Barrier – Aluminum tape laminated with PE ensures strong radial moisture protection and rust prevention.

  • Long Service Life – Reliable optical performance for backbone and metro networks.

  • Wide Applications – Perfect for telecom backbone, CATV, and high-speed data transmission systems.

GYTA Armored Fiber Optic Cable 2-144 Core Outdoor Loose Tube for Aerial & Duct 0

Specification:

item value
Model Number GYTA
Type Outdoor Fiber Optic Cable
Place of Origin Guangdong,China
Brand Name jiqian
Number of Conductors ≥ 10
Fiber count 2-288 Cores
Fiber Type G652D Single mode or as your request
Loose tube material PBT
Central strength member steel wire
Armoured Al tape
Outer Sheath PE
Cable Structure Multi-Loose Tube Aluminum/Steel Tape armor
Color Black or as your need
Package Fumigation free wooden drum
Installation aerial, in duct
Certification CE/ROHS/ISO9001 /ANATEL
OEM Available


Structure and Technical Specifications:

Fiber Nominal Nominal Max Fiber Max No. Allowable Tensile Allowable Crush
Count Diameter Weight Per Tube of(Tubes+ Load(N) Resistance(N/100mm)
  (mm) (kg/km)   fillers) Short Term Long Term Short Term Long Term
2~36 10.3 109 6 6 1500 600 1000 300
38~72 11.5 145 12 6 1500 600 1000 300
74~96 13.5 175 12 8 1500 600 1000 300
98~120 14.8 209 12 10 1700 600 1000 300
122~144 16.6 249 12 12 2000 600 1000 300
146~216 16.7 254 12 18(2 layers) 2000 600 1000 300
218~288 19 325 12 24(2 layers) 2500 600 1000 300

Delivery:
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Packaging Details:
Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed.

GYTA Armored Fiber Optic Cable 2-144 Core Outdoor Loose Tube for Aerial & Duct 1

WHY CHOOSE US:

GYTA Armored Fiber Optic Cable 2-144 Core Outdoor Loose Tube for Aerial & Duct 2



Certification:

GYTA Armored Fiber Optic Cable 2-144 Core Outdoor Loose Tube for Aerial & Duct 3

FAQ



1. Who Are We?
We are a professional fiber optic cable manufacturer in Guangdong, China, established in 2017. Our products are exported worldwide, with major markets in Africa, South America, Western Europe, the Middle East, Southeast Asia, and South Asia. We have a team of 11–50 skilled employees.

2. How Do We Guarantee Quality?

  • Pre-production samples are offered before mass production.

  • 100% final inspection is carried out before shipment.

3. What Products Do We Offer?
Fiber Optic Cables, FTTH Drop Cables, Communication Cables, and Indoor/Outdoor Fiber Cables.

4. What Services Are Available?

  • Delivery Terms: FOB, EXW

  • Payment Methods: T/T, L/C, D/P, D/A, Credit Card, PayPal, Western Union, Cash

  • Currencies Accepted: USD, CNY

  • Languages: English, Chinese

5. What Is the Minimum Order Quantity (MOQ)?
The MOQ is 1 km.

6. Can I Get a Sample?
Yes, we offer free samples; you only need to pay the shipping fee.

7. Do You Support OEM/ODM?
Yes, we provide customized solutions with full OEM and ODM support.

8. What Is the Lead Time?
Usually 3–7 days after order confirmation, depending on quantity and specifications.
