96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission

contacto

96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission

Quantidade de ordem mínima :	1 km	Detalhes da embalagem :	Tambor de madeira
Tempo de entrega :	5-8 dias de trabalho	Termos de pagamento :	L/C, T/T, Western Union
Habilidade da fonte :	30km pelo dia

Lugar de origem:	Guangzhou, China	Marca:	JQ/OEM/Customize
Certificação:	ISO9001 ROHS CE-EMC FCC SDOC	Número do modelo:	GCYFY/GCYFTY

Informação detalhada
Contagem de fibras:	4-144CORES	Tipo de fibra:	Modo único/modo multi
Jaqueta:	PE/PVC/LSZH/HDPE/MDPE	Cor:	Preto ou alaranjado ou personalizado
Nome do produto:	micro cabo Ar-fundido	Número do modelo:	GCYFY/GCYFTY
Comprimento:	2 km ou comprimento personalizado	Instalação:	Aéreo ou duto
Número de condutores:	≥ 10	Ar livre:	Cabo de fibra óptica ao ar livre
Membro da Força Central:	Fios de FRP ou de aço	Material de bloqueio de água:	Fita de bloqueio de água ou composto de enchimento
armadura:	Blindagem de fita de aço ondulado	Tamanho do cabo:	8mm ~ 16mm
Núcleos:	Conforme o pedido do comprador	Estrutura do cabo:	Blindagem de tubos de aço com múltiplos laços
RTS:	45-80 KN	Temperatura operacional:	-40 ° C a +70 ° C.
OEM:	Aceitável	Garantia:	25 anos
Tubo solto:	PBT	Modelo:	Cabos blindados de fibra óptica
Material da jaqueta:	Pe	Modelo de fibra:	SingleMode/Multimode
Essencial:	12-144cores	Diâmetro do mensageiro:	5,0 mm
Cor do casaco:	Preto	Fora da bainha:	HDPE
Tempo do elevador:	Mais de 20 anos	Material de tubo solto:	PBT
Estrutural:	tubo central solto	Material da bainha interna:	PE/PEAD
Amostra:	Livre	Número central:	6cores/8cores/12cores
Membro da força:	Fio de aço	Tipo de cabo:	Tubo solto
Destacar:	96 core microduct fiber cable , air blown outdoor fiber optic , loose tube high speed cable

Descrição de produto

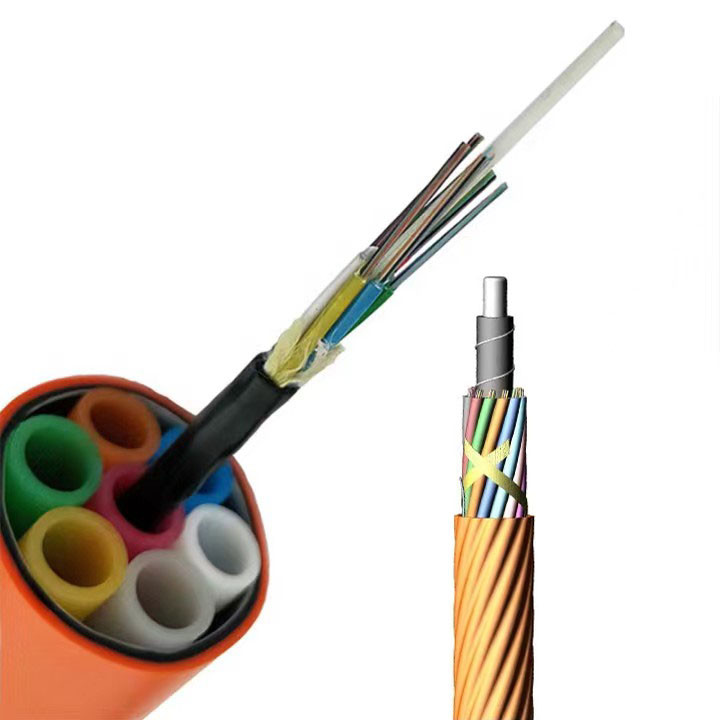

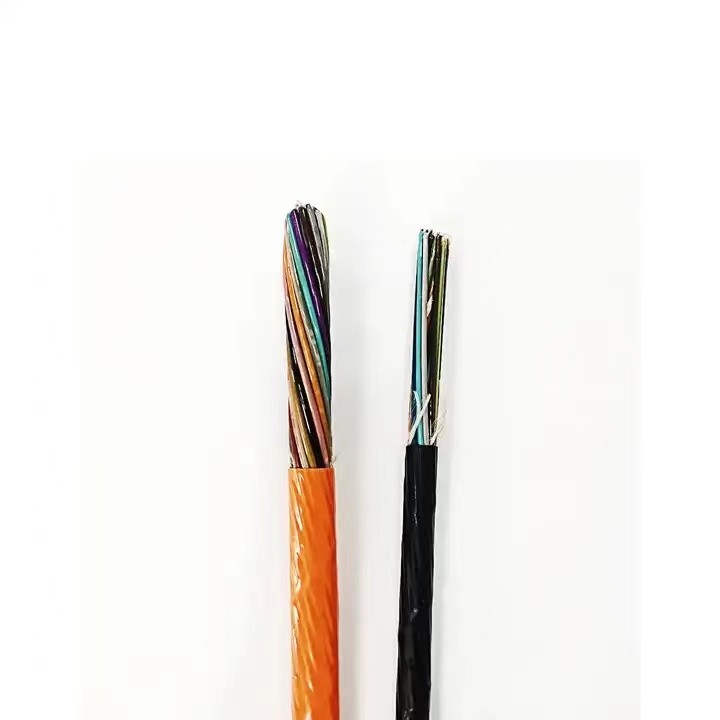

Stranded Loose Tube GCYFY Air-Blown Micro Duct Cable

Product Description

The GCYFY air-blown micro duct cable features a stranded loose tube design for high-performance communication networks. Compact, lightweight, and easy to handle, it is optimized for air-blown installation in micro ducts, allowing rapid and cost-effective deployment.

Each loose tube houses premium optical fibers with water-blocking gel, ensuring strong mechanical protection and stable signal transmission even in harsh conditions. The stranded construction improves tensile strength, while the durable outer sheath resists moisture and environmental impact.

Thanks to its high fiber count and efficient structure, this GCYFY cable is ideal for FTTx, backbone links, data centers, and metro networks requiring high-speed, high-capacity data transmission.

1. Model: GCYFY-96B1.3

2. Cable Cross-section

96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission 0

Optical Characteristics

Item	Specification
Fiber type	G.652D
Attenuation
@ 1310 nm	≤0.36 dB/km
@ 1383 nm	≤0.35 dB/km
@ 1550 nm	≤0.22 dB/km
@ 1625 nm	≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc)	≤1260 nm
Zero Dispersion Wavelength(nm)	1300 ~ 1324 nm
Zero Dispersion Slope	≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm	≤3.5 ps/(nm. km)
@ 1550 nm	≤18 ps/(nm. km)
@ 1625 nm	≤22 ps/(nm. km)
PMDQ	≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm	9.2±0.4 um
Core Concentricity Error	≤0.6 um
Cladding Diameter	125.0±0.7 um
Cladding Non-circularity	≤1.0%
Coating Diameter	245±10 um
Proof Test	100 kpsi (=0.69 Gpa), 1%

Fiber & Tube Color

Features
GCYFY stranded loose tube air-blown micro cable uses a non-metallic strength member and unarmored structure, making it lightweight and flexible. It can be installed by air-blowing into pre-laid micro ducts, eliminating the constraints of traditional cable-laying methods. This design increases duct utilization, simplifies network expansion, and supports efficient, scalable deployment.

Cable Parameters

Cores

Cores/tube

FRP diameter (mm)

Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)

1.5

0.5±0.1

5.6

1.5

0.5±0.1

5.6

48	12	1.5	0.5±0.1	5.6	24
72	12	1.5	0.5±0.1	5.6	24
96	12	2.5	0.5±0.1	6.6	38

Environmental Characteristics

Working temperature	-35oC ~ +70oC
Storage and transportation temperature	-35oC~ +70oC
Installation temperature	-15oC~ +60oC

Applications
• Ideal as a drop cable in FTTH networks, connecting branch points to subscriber access points through air-blown installation.
• Suitable for backbone, metropolitan area, and access networks requiring high-speed, high-capacity transmission.

Delivery Length
• Standard supply length: 2,000 m per reel; custom lengths available on request.

96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission 3

FAQ

Q1: What is GCYFY air-blown micro duct cable used for?
A: It is widely applied in FTTx projects, backbone links, data centers, and metro networks, delivering high fiber capacity and fast deployment.

Q2: How is it installed?
A: The cable is air-blown into micro ducts, allowing quick, flexible, and cost-efficient installation.

Q3: Why use a stranded loose tube design?
A: It enhances strength, flexibility, and fiber protection, ensuring stable data transmission.

Q4: Is it water-resistant?
A: Yes, water-blocking gel inside the loose tubes prevents moisture and safeguards fibers.

Q5: What fiber counts are available?
A: Standard counts include 24, 48, and 96 cores, with custom options available on request.

Q6: Do you offer OEM service?
A: Yes, we can provide OEM service and print your logo or label on the cable and packaging.

Q7: Can I request samples?
A: Yes, sample orders are available for quality testing before bulk purchase.
