GYXTW Single Mode Fiber Optic Cable Armored HDPE Sheath Aerial Duct Outdoor Optical Cable

contacto

GYXTW Single Mode Fiber Optic Cable Armored HDPE Sheath Aerial Duct Outdoor Optical Cable

Quantidade de ordem mínima :	1 km	Preço :	60-200USD/KM
Detalhes da embalagem :	Tambor de madeira	Tempo de entrega :	3-5 dias, depende da sua quantidade
Termos de pagamento :	L/C, D/A, T/T, Western Union, MoneyGram	Habilidade da fonte :	60000 km/mês

Lugar de origem:	Guangdong, China	Marca:	Jiqian/Customize/ OEM
Certificação:	CE/ISO9001/RoHS/FCC	Número do modelo:	GYXTW-4/6/8/12B1

Informação detalhada
Contagem de fibras:	2-24 núcleo	Membro da força:	Fios de aço
Garantia:	25 anos	MOQ:	1 km
OEM:	Sim	Blindado:	Sim
fábrica:	Sim	Construção:	Tubo solto preso
Nenhum de núcleo:	24 pares	Tipo de conector:	SC, LC, FC, ST ou personalizado
Diâmetro externo:	10.5~18.8+_0.5mm	Fortalecer o núcleo:	Frp
Código de fibra:	Gyta53	Temperatura:	-20 graus ~ +70 graus
Dama exterior do cabo:	8.9-10.2mm	Bainha:	HDPE/LSZH
Material da armadura:	Fita de alumínio ondulado	Armadura:	Banda dupla de aço
Material de tubo solto:	PBT ou geleia	Jaqueta:	PE, MDPE, LSZH, PVC
Colocando o modo:	Ducto/Aterno	Item:	Gyta
Materail da jaqueta externa:	Pe	Aplicativo:	Comunicação ao ar livre
Resistência a UV:	Disponível	Impermeável:	Sim
Estrutura:	Tubo solto	Fibras de aramida:	importado ou nacional
Span:	100m, 150m, 200m	Fibras pelo tubo:	12 a 144
Métodos de colocação:	Aéreo	Cor do cabo:	Preto
Modelo:	PDLC-PDLC	Instalação:	Estrutura aérea autoportante, aérea, Duto
Destacar:	single mode armored fiber optic cable , outdoor HDPE fiber optic cable , aerial duct optical cable

Descrição de produto

Product Description

OEM Outdoor Duct Aerial GYXTW Armored Fiber Optic Cable Single Mode Multi Mode G652D 2 4 6 8 12 24 Core

Product Description :

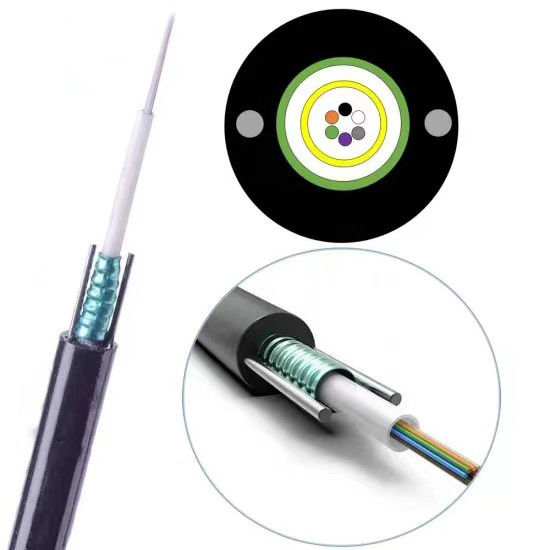

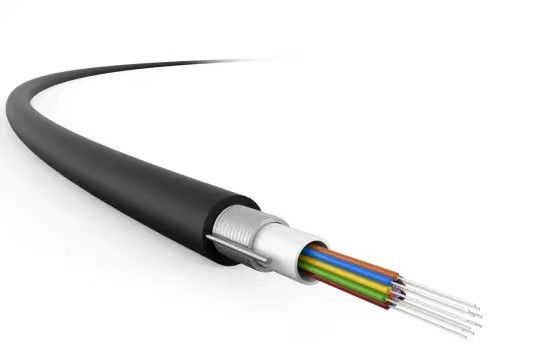

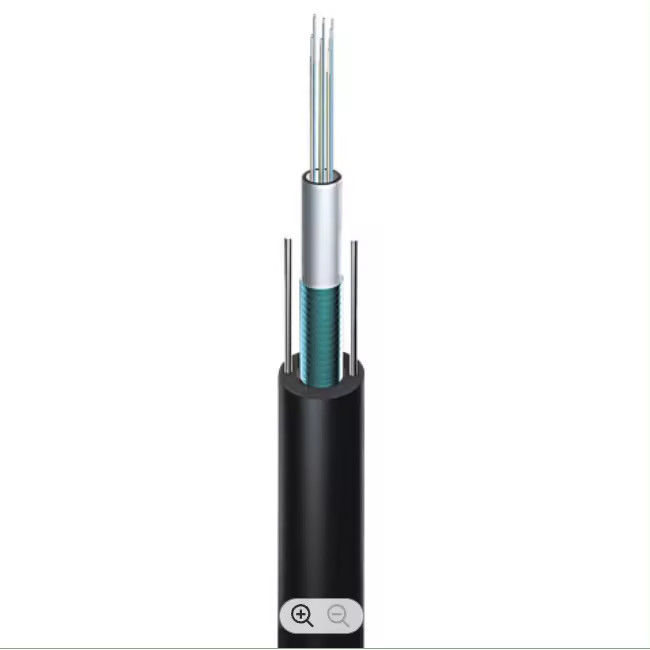

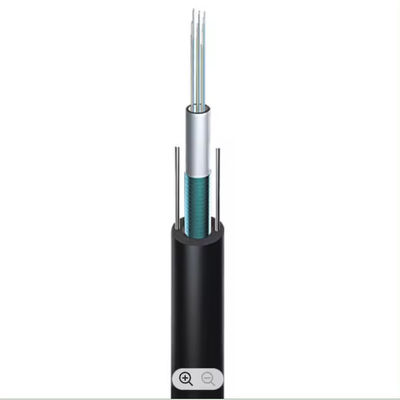

GYXTW optical cable, also called central loose tube or light armored fiber optic cable, is one of the most widely used outdoor cables. It is typically available in 2 to 12 cores based on the fiber color code.

GY stands for outdoor cable design
X indicates the central loose tube structure
T means the tube is filled with water-blocking gel
W represents the polyethylene outer sheath with steel wire reinforcement

Thanks to its armored structure and durable HDPE jacket, GYXTW cable is ideal for aerial, duct, and direct-buried installation. This makes it a reliable choice for FTTx, long-distance communication, and backbone network projects.

Characteristics

Parallel steel wire strength members provide extra protection and stability.
Central loose tube with filling compound protects fibers and steel parts from moisture.
Corrugated tape armor delivers excellent crush resistance and durability.
Compact, lightweight construction for easy handling.
Simple and efficient installation.

Operating Temperature

From -40°C to +60°C, ensuring stable performance in harsh environments.

Applications

Designed for outdoor optical distribution networks.
Perfect for aerial, duct, and pipeline installation.
Suitable for long-haul transmission and LAN communication projects.

PRODUCT SPECIFICATIONS

Item		Parameters
Fiber Count		12
Colored coated fiber	Dimension	250µm±15µm
Colored coated fiber	Color	Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua
Loose tube	Dimension	2.2mm±0.1mm
	Material	PBT
	Color	nature
Filler	MATERIAL	none
Filler	color	none
Strength Member	Dimension	0.7mm±0.05mm
Strength Member	material	Phosphating steel wire
Armoured	Material	Plastic coated steel strip
Outer jacket	Material	PE
Outer jacket	color	black

Related Products

Company Profile

Guangzhou Jiqian Fiber Optic Cable Co., Ltd. is a technology-driven enterprise focused on the R&D, production, and sales of communication products, with full import and export rights. With over 8 years of industry experience, we are an ISO 9001:2015 certified manufacturer specializing in fiber optic cables and patch cords.

We provide OEM services and custom cable design to match specific project requirements. Our product range covers optical fiber cables and accessories widely used in telecom networks, and our products are exported to markets including Egypt, Pakistan, the Maldives, India, Brazil, and Chile.

Q: Are you a factory or trading company?
A: We are a direct factory manufacturer.
Q: What is your MOQ?
A: The minimum order is 1 km for fiber optic cables.
Q: Which fiber brands do you use?
A: We work with Corning, YOFC, Fiberhome, and other trusted brands.
Q: Do you accept small orders?
A: Yes, we support small orders and new projects to help customers start their business.
Q: What is the lead time?
A: Normally 5–7 days after order confirmation, depending on quantity.
Q: Can you customize products and logos?
A: Yes, OEM customization and logo printing are available.
Q: What are your payment terms?
A: 30% deposit by T/T, L/C, or Western Union, with balance before shipment.
