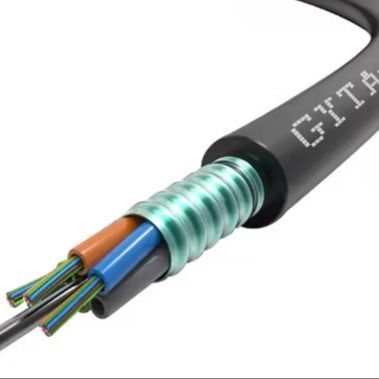

Outdoor GYTA/GYTS Fiber Optic Cable 12/24 Core Single Mode G652D Factory Direct Price

contacto

Outdoor GYTA/GYTS Fiber Optic Cable 12/24 Core Single Mode G652D Factory Direct Price

Quantidade de ordem mínima :	1 km	Detalhes da embalagem :	Tambor de madeira
Tempo de entrega :	5-8 dias úteis	Termos de pagamento :	L/C, T/T, Western Union
Habilidade da fonte :	4500KM pelo mês

Lugar de origem:	Cantão,China	Marca:	JQ/OEM/Customize
Certificação:	ISO9001/CE/ROHS/FCC	Número do modelo:	GYTA / GYTS

Informação detalhada
Tipo de fibra:	YOFC, Fiberhome, como o pedido	Cor:	Preto ou alaranjado ou personalizado
Jaqueta:	PE, MDPE, LSZH, PVC, HDPE	Membro da força:	Fios de aço/FRP de vidro
Contagem de fibras:	2-288 núcleos	Instalação:	Aérea e Duto
Blindado:	Fita de aço	Aplicação:	Rede/comunicação interurbana

Descrição de produto

Outdoor GYTA G652D GYTA / GYTS 12 24 Cores Single Mode G652D Fiber Optic Cable

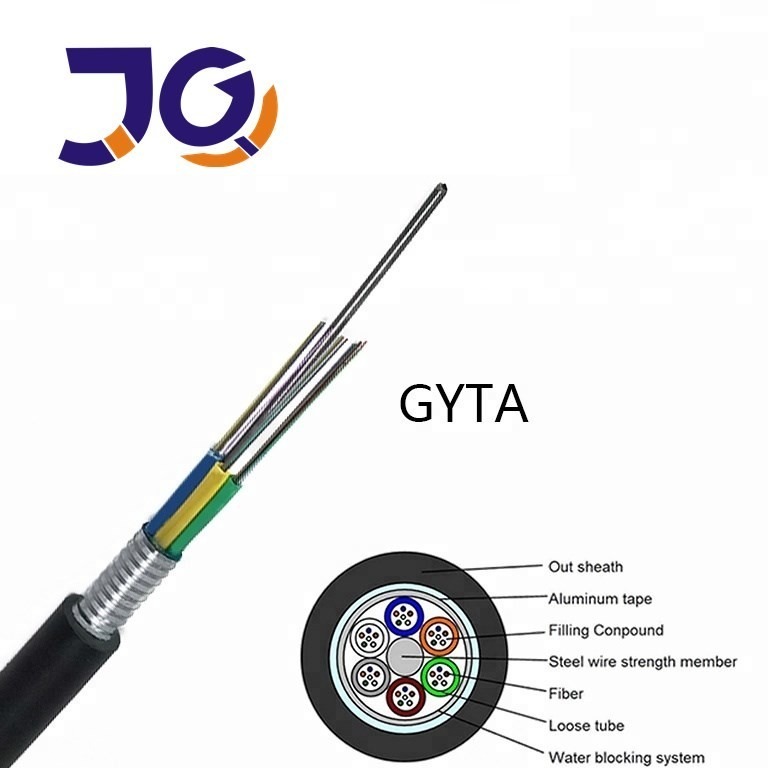

Clored bare fiber in PBT Loose tube, stranded loose tube, APL wrapping cable core, fiber optic cableG652D PE jacket, single steel wire central strengthen, application, duct

Product Features & Advantages

Durable Outdoor Structure:PBT loose tube with water-blocking gel for stable fiber protection.
Strong Mechanical Performance:High tensile and crush resistance; works from –40°C to +70°C.
Excellent Waterproofing:Full-core filling; GYTS adds APL armor for stronger moisture barrier.
UV-Resistant PE Jacket:Long service life for duct or aerial installation.
G652D Low-Loss Fiber:High bandwidth and long-distance transmission.
Easy Installation:Central strength member ensures stable pulling and fast deployment.

Other Models Available(Single/Double Jacket)

2F 4F 8F 12F 24F 48F 72F 96F 128F 144F 288F

Fiber Count	6	12	24	32	48	72
Cable Diameter (mm)	8.8	8.8	9.0	9.0	9.0	9.2
Tolerance Range (mm)	±0.2, or customized
Cable Weight (kgs/km)	75	75	75	75	75	75
Loose tube Diameter(mm)	1.6 or 2.0

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Mechanical Characteristic

Tensile (N)	Long term	600
	Short term	1500
Crush (N/100mm)	Long term	300
	Short term	1000
Min. Bending radius (D=Cable diameter)	Dynamic	20xD
	Static	10xD
Temperature Range (℃)		-20~+70

Application

Suitable for external application in duct and aerial

Outdoor GYTA/GYTS Fiber Optic Cable 12/24 Core Single Mode G652D Factory Direct Price 0

Product Description

Fiber Count	1 2 4 6 8 12 24 36 48 72 96 144 288 cores
Brand Name	JQ/OEM
Length	1km 2km 3km 4km 5km
Armored	Steel Tape or Aluminunm Tape

Outdoor GYTA/GYTS Fiber Optic Cable 12/24 Core Single Mode G652D Factory Direct Price 1

Outdoor GYTA/GYTS Fiber Optic Cable 12/24 Core Single Mode G652D Factory Direct Price 2

Outdoor GYTA/GYTS Fiber Optic Cable 12/24 Core Single Mode G652D Factory Direct Price 3

GYTS / GYTA Stranded Loose Tube Outdoor Armored Fiber Optic Cable Factory Offer We are 10+ years fiber optic cable manufacturer

Welcome to visit our factory!+86 18122384553
