GJFJH GJFJV 12 Core Indoor Distribution Fiber Optic Cable LSZH Singlemode

contacto

GJFJH GJFJV 12 Core Indoor Distribution Fiber Optic Cable LSZH Singlemode

Quantidade de ordem mínima :	1000m	Detalhes da embalagem :	Tambor de madeira
Tempo de entrega :	2-4 dias	Termos de pagamento :	Western Union, MoneyGram, T/T, L/C
Habilidade da fonte :	100 km por 2 dias

Lugar de origem:	China	Marca:	Jiqian/Customize/ OEM
Certificação:	ISO9001 ROHS CE-EMC FCC SDOC	Número do modelo:	Gjfjv

Informação detalhada
Tipo de fibra:	OM3/G652D/G657A1/G655	OEM:	Disponível
Temperatura operacional:	-20 a 70 °C	Membro da Força Central:	Fio de aramida/Fio de Kevlar
Material::	PVC/LSZH	Contagem de fibras:	núcleos 12 24 48 96
Marca de fibra:	Yofc/fiberhome/fujikura/Corning	Aplicativo:	Telecomunicações/Centro de Dados/FTTH
Destacar:	12 core indoor fiber optic cable , LSZH singlemode fiber cable , indoor distribution fiber optic cable

Descrição de produto

Indoor 12 Core Multimode Distribution Tight-Buffered Fiber Optic Cable (GJFJH / GJFJV)

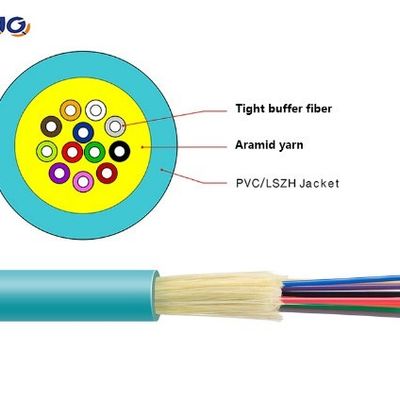

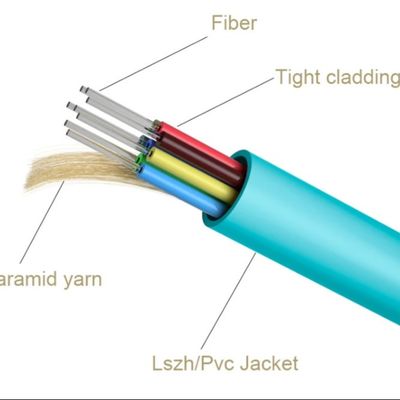

GJFJV indoor distribution cable uses 900μm flame-retardant tight-buffered fibers as the optical transmission medium. Each fiber is reinforced with a layer of aramid yarn for added tensile strength and then jacketed with either PVC or LSZH, depending on installation requirements.

The tight-buffer fibers are produced using high-precision buffering technology, available in 600μm or 900μm diameters. High-quality optical fibers, specialized production equipment, and strict process control ensure excellent mechanical stability and reliable transmission performance.

Features

Excellent mechanical and environmental performance
Flame-retardant design meets industry standards
Reliable mechanical strength for indoor/outdoor use
Soft, flexible, and easy to splice
High-capacity data transmission

Technical Data

No. of cable		8	12	24	36	48
Fiber Model		OM3
Tight lines	Material	PVC/LSZH
	Thickness(±0.03)mm	0.32
	Diameter(±0.06)mm	0.9
Center Strength Member	Material	FRP
Center Strength Member	Diameter(±0.1)mm	—	—	—	0.5	0.5
Strength Member	Material	Aramid Yarn
Inner Sheath	Material	PVC/LSZH
	Diameter(±0.1)mm	—	—	—	0.8	0.8
	Colour	Aqua
Outer Sheath	Material	PVC
	Thickness(±0.1)mm	0.9	1.0	1.0	1.5	1.5
	Colour	Aqua
Cable Diameter(±0.2)mm		5.8	6.2	8.5	15.1	15.1
Cable Wetght(±5)kg/km		31	41	60	238	235

Attenuation	850nm	dB/km	≤2.5
	1300nm		≤0.7
Bandwidth	850nm	MHz.km	≥3500
	1300nm		≥500
Allowable Tensile Strength	Short Term	N	660	660	660	1320	1320
	Long Term		200	200	200	660	660
Allowable Crush Resistance	Short Term	N/100mm	1000	1000	1000	1500	1500
	Long Term		200	200	200	300	300
Min. bending radius	Without Tension		10.0×Cable-φ
	Under Maximum Tension		20.0×Cable-φ
Temperature range (℃)	Installation		-20~+60
	Transport&Storage		-40~+70
	Operation		-40~+70

GJFJH GJFJV 12 Core Indoor Distribution Fiber Optic Cable LSZH Singlemode 0

FAQ

Are you a real manufacturer?
Yes, we are a professional factory in Guangzhou, China. Welcome to visit us!

What is your minimum order quantity?
1 KM. Trial orders and new projects are supported.

Can I get a sample?
Yes, free samples are available. You only need to cover express shipping.

What payment methods do you accept?
L/C, T/T, Western Union, and PayPal are all accepted.

What is the delivery time?
Usually 3–7 working days, depending on order quantity.

Can you supply customized products and logo?
Yes, we provide OEM & ODM services. Please contact us with your requirements.
