Name: MGTSV LSZH Duct Fiber Optic Cable 2 48 Core High Density Mining Communication Network
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: MGTSV
Price: 130.00 USD
Availability: InStock

Características Galeria Descrição de produto Peça umas citações

Características

Especificações

Material da jaqueta: LSZH-RETARDANTE DE FLAME

Contagem de fibras: 4-288cores

Estrutura: Tubo solto preso

Nome do produto: Cabo ótico exterior da fibra

Tipo de fibra: YOFC/Corning/Fiber Home/Fujikura ou conforme solicitação

Aplicativo: Aéreo, canal

Cor: azul/amarelo

Módulo: MGTSV-24B1

Informação básica

Lugar de origem: Cantão China

Marca: JQ/OEM/Customize

Certificação: ISO9001 ROHS CE-EMC FCC SDOC

Número do modelo: MGTSV

Condições de Pagamento e Envio

Detalhes da embalagem: 1/2/3/4/5 km em um tambor de madeira

Tempo de entrega: 3-5 dias

Termos de pagamento: L/C, T/T, Western Union

Habilidade da fonte: 4500KM pelo mês

Galeria

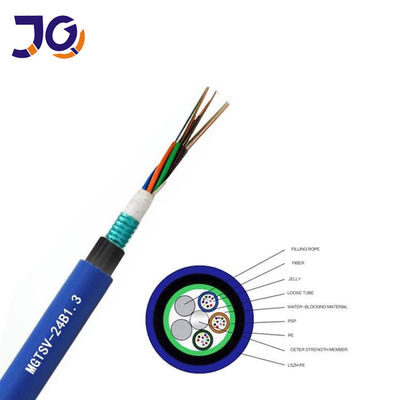

MGTSV LSZH Duct Fiber Optic Cable 2 48 Core High Density Mining Communication Network

Descrição de produto

Bule LSZH Jacket Mining Flame-Retardant Fiber Optic Cable 24 core MGTSV

Features

Excellent flame retardant performance for safe operation
High strength loose tube with hydrolysis resistance
Double sheath and single armor design offering strong crush resistance waterproofing and anti rodent protection
Non woven tape wrapped loose tube providing effective water blocking
Special tube filling compound ensures reliable fiber protection
Blue PVC or LSZH jacket flame retardant and easy identification
Flexible structure with high crush resistance for easy installation

Application

Suitable for mine duct installation
Suitable for aerial deployment

Storage and Operating Temperature

Storage temperature range from minus 40 degrees Celsius to plus 70 degrees Celsius
Operating temperature range from minus 40 degrees Celsius to plus 70 degrees Celsius

Item Name	MGTSV Fiber Optic Cable
Place of Origin	Guangdong,China
Model Number	MGTSV
Brand Name	JQ
Fiber Type	Single mode ITU-T G652D
Fiber No.	2-288 cores
Strength Member	Central Steel Wire/ FRP
Material of Jacket	Flame-retardant Sheath
Cable Structure	Stranded Loose Tube
Certificate	ISO9001/CE/RoHS/CE
Storing Temperature	-40℃ to +70℃
Application	Duct/Aerial

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Technical data

Cable Type	Fiber Count	Tubes +Fills	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long /Short Term N/100m	Bending Radius Static /Dynamic mm
MGTSV-2~6	2~60	5	12.2	156	1000/2000	500/1500	15D/30D
MGTSV-62~72	62~72	6	13.8	210	1750/3500	500/1500	15D/30D
MGTSV-74~96	74~96	8	15.1	242	1750/3500	500/1500	15D/30D
MGTSV-98~120	98~120	10	17.2	280	1750/3500	500/1500	15D/30D
MGTSV-122~144	122~144	12	19	320	1750/3500	500/1500	15D/30D
MGTSV-146~216	146~216	18	19	320	1750/3500	500/1500	15D/30D

Product Image

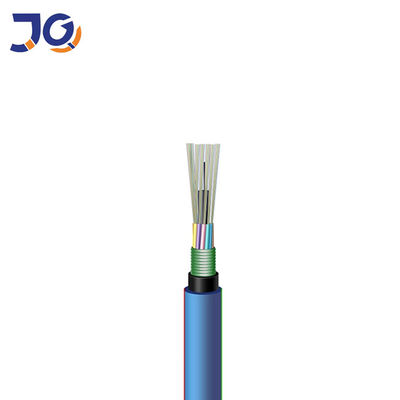

MGTSV LSZH Duct Fiber Optic Cable 2 48 Core High Density Mining Communication Network 1

Packing&Delivery

1/2/3/4/5 km in one wooden drum,deliver days:5-8work days

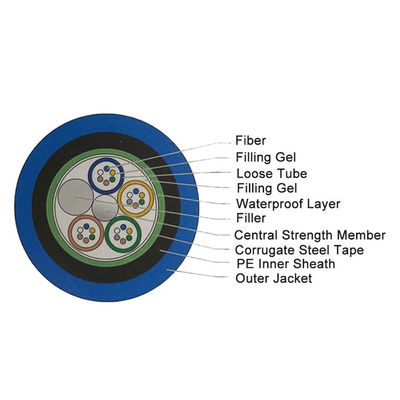

MGTSV LSZH Duct Fiber Optic Cable 2 48 Core High Density Mining Communication Network 2

MGTSV LSZH Duct Fiber Optic Cable 2 48 Core High Density Mining Communication Network 3

MGTSV LSZH Duct Fiber Optic Cable 2 48 Core High Density Mining Communication Network 4
