GYTS 24 Core Duct Fiber Optic Cable Steel Tape Armored Outdoor Communication Cable

1 km
MOQ
GYTS 24 Core Duct Fiber Optic Cable Steel Tape Armored Outdoor Communication Cable
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Tipo de fibra: YOFC, Fiberhome, como o pedido
Cor: Preto ou personalizado
Jaqueta: PE, MDPE, LSZH, PVC, HDPE
Membro da força: Fios de aço/FRP de vidro
Contagem de fibras: 2-288 núcleos
Instalação: Enterro direto e duto
Blindado: Fita de aço
aplicativo: Rede/comunicação interurbana
Destacar:

24 core duct fiber optic cable

,

steel tape armored outdoor cable

,

duct fiber optic communication cable
Informação básica
Lugar de origem: GUANGZHOU, CHINA
Marca: JQ/OEM/Customize
Certificação: ISO9001 ROHS CE-EMC FCC SDOC
Número do modelo: GYTS-24B1
Condições de Pagamento e Envio
Detalhes da embalagem: Tambor de madeira
Tempo de entrega: 5-8 dias úteis
Termos de pagamento: L/C, T/T, Western Union
Habilidade da fonte: 4500KM pelo mês
Descrição de produto

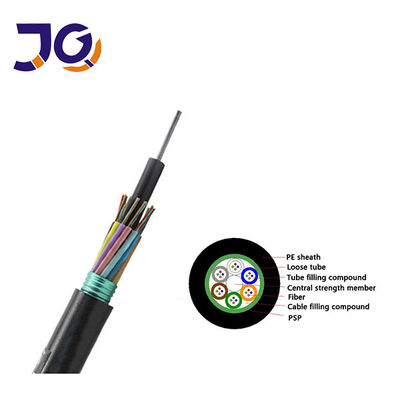

GYTS 24 core Single mode Outdoor Duct Armored Outdoor Fiber Optic Cable

GYTS aerial fiber optic cable features single mode or multimode fibers placed in hydrolysis-resistant loose tubes filled with water-resistant compound.



Tubes and fillers are stranded around a central strength member to form a compact cable core. PSP steel tape provides crush resistance and moisture protection.



The cable is finished with a durable PE outer sheath, ensuring excellent watertight performance for aerial installation.

Key Features

  • Excellent mechanical strength and temperature performance

  • Water-resistant high-strength loose tube

  • Fiber protected by special filling compound

  • Compact structure prevents tube shrinkage

  • UV-resistant PE jacket for outdoor durability

  • Central steel strength member for added support

  • Full core filling for moisture protection

  • APL moisture barrier for enhanced waterproof performance

Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Technical Parameters

Fiber
Count		 Diameter
(MI)		 Weight
(KG/KMI)		 Min.Bend Radius Mlin.Tension
(N)		 Crush
(N/100MMl)
Static Dynamic Long Term Short Term Long Term Short Term
2-30 9.8 95

10
Times
of
Diameter

















20
Times
of
Diameter

















 1500 600 1000 300
32-36 10.3 115 1500 600 1000 300
38-60 10.7 115 1500 600 1000 300
62-72 11.3 140 1500 600 1000 300
74-96 12.9 175 1500 600 1000 300
98-120 14.4 210 1500 600 1000 300
122-144 15.8 245 1500 600 1000 300
146-216 16.3 260 1500 600 1000 300
218-240 19.5 345 1500 600 1000 300
242-288 21.7 415 1500 600 1000 300

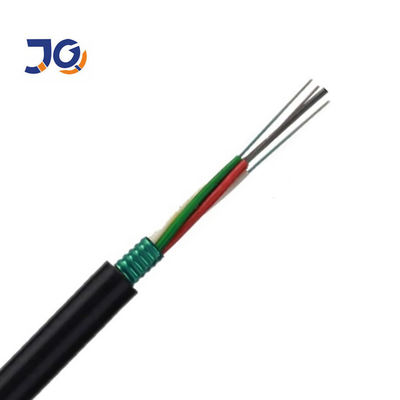

Product Show

GYTS 24 Core Duct Fiber Optic Cable Steel Tape Armored Outdoor Communication Cable 0

GYTS 24 Core Duct Fiber Optic Cable Steel Tape Armored Outdoor Communication Cable 1

Application

Suitable for external application in duct and aerial

GYTS 24 Core Duct Fiber Optic Cable Steel Tape Armored Outdoor Communication Cable 2

Delivery&Payment

GYTS 24 Core Duct Fiber Optic Cable Steel Tape Armored Outdoor Communication Cable 3



FAQ

1. Are you a manufacturer or trading company?
We are a manufacturer with 10 years of experience, based in Guangzhou. Factory visits are welcome.



2. How do you ensure quality?
All products are fully tested before shipment. Free samples are available after price confirmation.



3. Do you accept small orders?
Yes, trial and small orders are supported.



4. What is your delivery time?
Usually 3–7 working days, depending on order quantity.



5. Do you offer OEM service?
Yes, logo printing and customization are available.
