Outdoor FTTH Fiber Optic Drop Cable 2.0x5.0mm Single Mode Flat Drop Cable for Aerial and Wall Installation

1 km
MOQ
Outdoor FTTH Fiber Optic Drop Cable 2.0x5.0mm Single Mode Flat Drop Cable for Aerial and Wall Installation
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Tipo de fibra: G657A1/G657A2/G652D
Contagem de fibras: 1/2/4 de núcleo
Cor da jaqueta: Preto, branco, conforme pedido.
Diâmetro do cabo: 2.0*5.0mm
Membro da força: Fio de aço de 0,45 mm
Material da jaqueta: LSZH/PVC
Aplicativo: FTTH FTTB FTTX Network
Atenuação ((max): ≤ 0,36 dB /KM ((1310nm)
Destacar:

Outdoor FTTH fiber optic drop cable

,

Single mode flat drop cable

,

Aerial wall installation fiber cable

Informação básica
Lugar de origem: GUANGZHOU, CHINA
Marca: JQ/OEM/Customize
Certificação: ISO9001 ROHS CE-EMC FCC SDOC
Número do modelo: GJYXCH/GJYXFCH
Condições de Pagamento e Envio
Detalhes da embalagem: embalagem de madeira ou caixa de cartões
Tempo de entrega: 5-8 dias úteis
Termos de pagamento: L/C, T/T, Western Union
Habilidade da fonte: 30km pelo dia
Descrição de produto

1/2/4 Core Self-Supporting G657A1 Outdoor Ftth Fiber Optic Drop Cable



FTTH Flat Drop Cable Product Features

  • 1.0mm high tensile steel wire for self supporting installation and lower deployment cost

  • Dual parallel FRP or steel strength members for strong crush resistance

  • Flute design for easy stripping and fast splicing

  • Low smoke zero halogen flame retardant sheath for indoor safety

  • Compact size 2.0 x 5.0 mm for space saving wiring

  • Compliant with Telcordia GR 326 CORE standard

Application Scenarios

  • FTTH last mile access network

  • Aerial self supporting installation

  • Indoor building and shaft wiring

  • Residential and commercial broadband connection

  • Telecom terminal and distribution systems

Outdoor FTTH Fiber Optic Drop Cable 2.0x5.0mm Single Mode Flat Drop Cable for Aerial and Wall Installation 0

Outdoor FTTH Fiber Optic Drop Cable 2.0x5.0mm Single Mode Flat Drop Cable for Aerial and Wall Installation 1

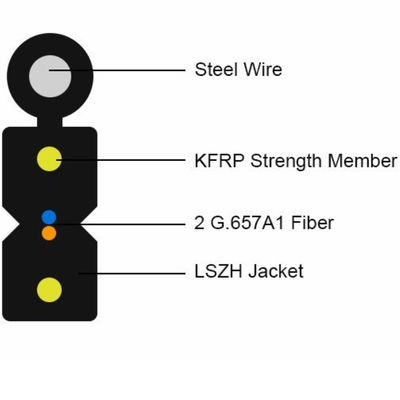

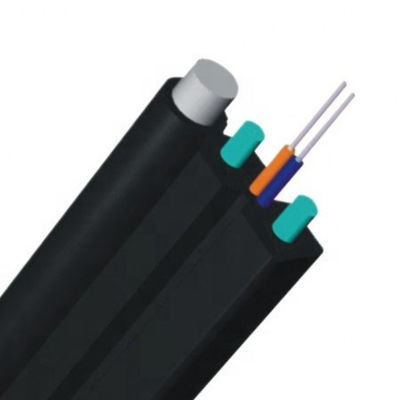

Product detail

Outdoor FTTH Fiber Optic Drop Cable 2.0x5.0mm Single Mode Flat Drop Cable for Aerial and Wall Installation 2



Technical parameters

Product
Model
Fiber
Count
(core)
CableDiameter(mm) CableWeight
(kg/km)
Tensile
Strength
Long/Short
Term(N)
Crush
Resistance
Long/Short
Term(N)
Bending
Radius
Static/
Dynamic
GJXH 1 (2.1+0.1)*(3.1+0.1) 10 1000/2200 200/1000 15/30
GJXH 2 (2.1+0.1)x(3.1+0.1) 10 1000/2200 200/1000 15/30
GJXH 4 (2.3+0.1)*(3.3+0.1) 12 1000/2200 200/1000 |15/30
GJXFH 1 (2.1+0.1)x<(3.1+0.1) 9 800/1800 200/1000 15/30
GJXFH 2 (2.1+0.1)x(3.1+0.1) 9 800/1800 200/1000 15/30
GJXFH 4 (2.1+0.1)x(3.1+0.1) 11 800/1800 200/1000 15/30
GJYXCH 1 (2.1+0.1)*(5.1+0.1) 21 1500/2500 500/1300 15/30
GJYXCH 2 (2.1+0.1)*(5.1+0.1) 21 1500/2500 500/1300 |15/30
GJYXCH 4 (2.1+0.1)x(5.1+0.1) 21 1500/2500 500/1300 15/30
GJYXFCH 1 (2.1+0.1)*(5.1+0.1) 20 1500/2500 500/1300 15/30
GJYXFCH 2 (2.1+0.1)x(5.1+0.1) 20 1500/2500 500/1300 15/30
GJYXFCH 4 (2.1+0.1)x(5.1+0.1) 20 1500/2500 500/1300 15/30



Package

Nominal shipping length of the cable will be 1~3 km. Other length is also available if required by buyer.
Each length of the cable will be wound on a separate strong wooden.one drum in a carton box

Outdoor FTTH Fiber Optic Drop Cable 2.0x5.0mm Single Mode Flat Drop Cable for Aerial and Wall Installation 3

Outdoor FTTH Fiber Optic Drop Cable 2.0x5.0mm Single Mode Flat Drop Cable for Aerial and Wall Installation 4

Outdoor FTTH Fiber Optic Drop Cable 2.0x5.0mm Single Mode Flat Drop Cable for Aerial and Wall Installation 5



FAQ

1. Are you a trading company or manufacturer?
We are a professional manufacturer with 10 years experience in fiber optic cable, FTTH drop cable and patch cord production. Our factory is located in Guangzhou and factory visits are welcome.



2. How do you ensure product quality?
All products are fully tested before delivery. Free samples are available for quality inspection after price confirmation.



3. Do you accept small orders?
Yes, small orders are supported. We are happy to grow with customers from trial orders to bulk cooperation.



4. What is the delivery time?
Usually 3 to 7 working days depending on order quantity. We arrange shipment as soon as possible after payment.



5. Do you provide OEM service?
Yes, OEM service is available. We can print your logo and customize products according to your requirements.
