Name: GYFTY83 Anti-Rodent Armored FRP Strength Member 12 24 48Core Fiber Optic Cable
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GYFTY83
Price: 1,249.28 USD
Availability: InStock

Características Galeria Descrição de produto Peça umas citações

Características

Especificações

Número do modelo: GYFTY83

Tipo: cabo de fibra óptica ao ar livre

Lugar de origem: Cantão, China

Número de condutores: ≥ 10

Tipo de fibra: G652D Modo único ou como seu pedido

Comprimento: conforme necessário

Cor: personalizado

Estrutura do cabo: Tubos múltiplos sem blindagem

Tubo solto: PBT

Membro da Força Central: PRFV

Jaqueta: Bainha dobro

Pacote: Tambor de madeira/personalizado

Aplicativo: Antenas e condutas externas

OEM: Disponível

Destacar:

Anti-Rodent FRP fiber optic cable

Outdoor armored fiber optic cable

12-48 core FRP strength cable

Informação básica

Lugar de origem: Guangdong,China

Marca: JQ/OEM

Certificação: CE/ISO9001

Número do modelo: GYFTY83

Condições de Pagamento e Envio

Detalhes da embalagem: Tambor de madeira

Tempo de entrega: 2-5 dias

Termos de pagamento: L/C, D/A, D/P, T/T, Western Union

Habilidade da fonte: 8000 quilômetros por mês

Galeria

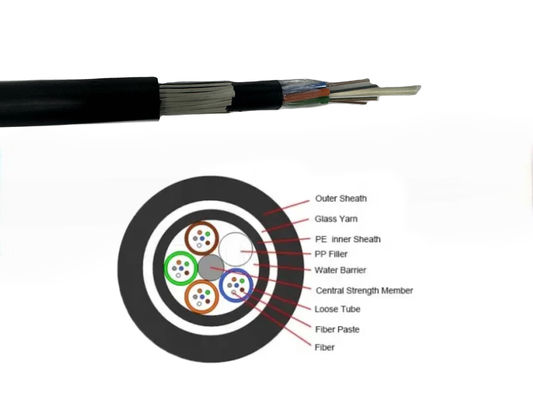

GYFTY83 Anti-Rodent Armored FRP Strength Member 12 24 48Core Fiber Optic Cable

Descrição de produto

GYFTY83 Anti-Rodent Armored FRP Strength Member 12 24 48Core Fiber Optic Cable

GYFTY83 fiber optic cable is an anti-rodent outdoor cable designed for harsh environments, providing reliable performance and strong protection against physical damage and pests.

Key Features:
FRP armored structure for rodent protection
High resistance to crushing and impact
PE or PVC outer jacket for weather resistance
Resistant to moisture UV and chemicals
Stable performance in extreme environments

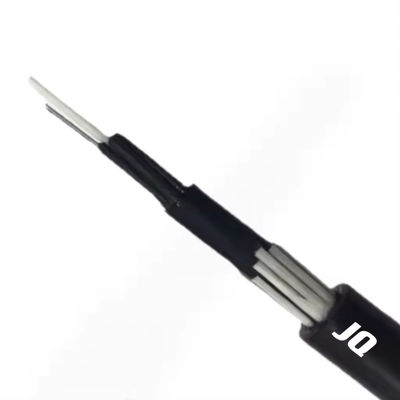

GYFTY83 Anti-Rodent Armored FRP Strength Member 12 24 48Core Fiber Optic Cable 0

Applications:
* Outdoor harsh environment installations
* Areas with high rodent activity
* Underground and duct installations
* Telecom and backbone networks

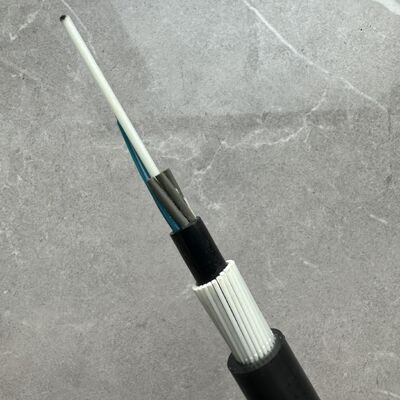

GYFTY83 Anti-Rodent Armored FRP Strength Member 12 24 48Core Fiber Optic Cable 1

Optical Characteristics

Fiber Type		G.652	G.655	50/125^m	62.5/125^m
Attenuation	850 nm			<3.0 dB/km	<3.3 dB/km
(+20X)	1300 nm			<1.0 dB/km	<1.0 dB/km
	1310 nm	<0.34 dB/km	<0.40 dB/km
	1550 nm	<0.21 dB/km	<0.23 dB/km
Bandwidth	850 nm			>500 MHz-km	>200 Mhz-km
	1300 nm			>500 MHz-km	>500 Mhz-km
Numerical Aperture				0.200±0.015 NA	0.275±0.015 NA
Cable Cut-off Wavelength cc		<1260 nm	<1450 nm

Technical parameters

cable countr	out sheath diameter	Weight	Minimum allowable Tensile strength(N)		Minimum		Min bending radius(MM)
	(MM)	(KG)	Minimum allowable Tensile strength(N)		allowable Crush load(N/100mm)		Min bending radius(MM)
			Short term	Long term	Short term	long Term	short term	long Term
2-36	12.8	170	3000	1000	3000	1000	20D	10D
38-72	14.2	212	3000	1000	3000	1000	20D	10D
74-96	15.7	245	3000	1000	3000	1000	20D	10D
98-120	17.3	289	3000	1000	3000	1000	20D	10D
122-144	18.8	328	3000	1000	3000	1000	20D	10D

Certification:

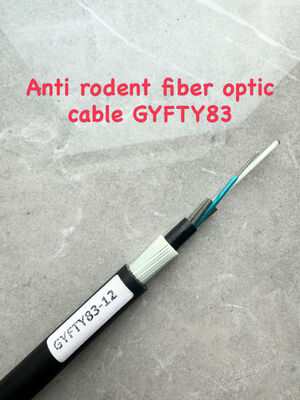

GYFTY83 Anti-Rodent Armored FRP Strength Member 12 24 48Core Fiber Optic Cable 2

FAQ

1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable

4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

5.MOQ: what is your minimum quantity?
-MOQ : 1KM

6.Can I get a sample?
-Yes, we provide FREE sample and you just need to pay for express freight.

7.Accept OEM or ODM?
-Yes,we're manufacturer. And we have our own Engineering Department. You just need to tell us your requirements.

8.What is your delivery time?
-The general delivery time is 3-7 days after order confirmed. It depends on the order quantity.
