G652D 6 8 Core Photoelectric Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC

Quantidade de ordem mínima :	1 km	Detalhes da embalagem :	1/2/3/4/5 km em um tambor de madeira
Tempo de entrega :	3-5 dias	Termos de pagamento :	L/C, T/T, Western Union
Habilidade da fonte :	30km pelo dia

Lugar de origem:	Guangzhou China	Marca:	JQ/OEM/Customize
Certificação:	ISO9001 ROHS CE FCC SDOC	Número do modelo:	Gydts/OPLC

Informação detalhada
Material da jaqueta:	PE, MDPE, LSZH, HDPE	Diâmetro externo:	9mm
Contagem de fibras:	2-144Core	Estrutura:	Tubo unitário/cabo torcido enrolado
Membro da força:	Fios de aço/FRP de vidro	Nome do produto:	Cabos de fibra óptica híbrida
Tipo de fibra:	YOFC ou conforme pedido	Aplicação:	Aéreo, canal
Cor:	Preto	Comprimento:	2 km ou comprimento personalizado
Tipo de fibra:	Modo/multimodo único	Cor do cabo:	Preto/Amarelo/Laranja/Verde/Azul/Roxo/Cinza
Marca registrada:	JIANGHONG ou OEM	Jaqueta externa:	PE (HDPE/LDPE), PVC, LSZH
Tipo de cabo:	Híbridos	Materiais de fibras ópticas:	PMMA e fios de potência de cobre
Forma de material:	Fio redondo	Material da jaqueta:	PVC/LSZH/OFNR/OFNP
Material de bainha:	PVC	Contagem de fibras:	2-144 núcleos
Padrão:	O número de veículos deve ser indicado.	Perda de retorno:	≥50dB
Instalação:	Anel/tubo/ducto
Destacar:	6 core hybrid fiber optic cable , 8 core photoelectric hybrid cable , OPLC fiber optic cable with copper wires

Descrição de produto

G652D 6 Core Hybrid Fiber Optic Cable With 2 Copper Power Wires

GYDTW/GYDTS

Hybrid Cable 2–24 Core GYXTW with Two Copper Power Wires

Composite fiber optic cables combine multiple components—such as optical fibers and metal conductors—within a single bundle. This design allows multiple transmission paths in one cable, reducing installation costs and lead time. The 250μm fiber is placed in a loose tube made of high-modulus plastic, filled with a water-resistant compound. The tube is wrapped with a layer of PSP, with water-blocking material between the PSP and the loose tube to ensure compactness and watertight performance. Two parallel steel wires run along both sides of the steel tape for added strength. The cable is completed with a durable polyethylene (PE) jacket.

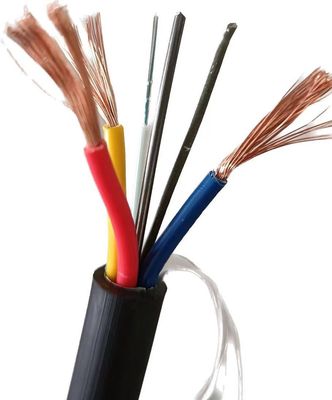

G652D 6 8 Core Photoelectric Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC 0

Features

Excellent mechanical and temperature performance
High-strength loose tube with hydrolysis resistance
Special filling compound for optimal fiber protection
Compact, lightweight, flexible design with strong bend resistance
Low dispersion and attenuation; precise fiber excess length and controlled stranding ensure superior mechanical and environmental performance
Steel wire and corrugated steel tape armoring provide moisture resistance and crush protection

Optical Fiber Characteristics

Item	Specification
Fiber type	G.652D
Attenuation
@ 1310 nm	≤0.36 dB/km
@ 1383 nm	≤0.35 dB/km
@ 1550 nm	≤0.22 dB/km
@ 1625 nm	≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc)	≤1260 nm
Zero Dispersion Wavelength(nm)	1300 ~ 1324 nm
Zero Dispersion Slope	≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm	≤3.5 ps/(nm. km)
@ 1550 nm	≤18 ps/(nm. km)
@ 1625 nm	≤22 ps/(nm. km)
PMDQ	≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm	9.2±0.4 um
Core Concentricity Error	≤0.6 um
Cladding Diameter	125.0±0.7 um
Cladding Non-circularity	≤1.0%
Coating Diameter	245±10 um
Proof Test	100 kpsi (=0.69 Gpa), 1%

Technical Parameters

Range of Temperature			-20c~ +60c
Riser			Type OFNR/OFN FT4
Plenum			Type OFNR/OFN FT6
Jacket			LSZH or PE
Code name	cable cores	Diameter (mm)	Copper Wire (mm)	Linear mass (kgk m)	Tensile		Crush		Bending radius
Code name	cable cores	Diameter (mm)	Copper Wire (mm)	Linear mass (kgk m)	Short Term (N)	Long Term (N)	Short lerm N)	Long Term (N)	short Term N)	Long Term (N)
OPLC-2*0.5	6~24	10	2*0.5	125	1500	600	1000	300	20D	10D
OPLC-4*0.5	6-~24	10	4*0.5	130	1500	600	1000	300	20D	10D
OPLC-2*0.75	6~24	10	2*0.75	128	1500	600	1000	300	20D	10D
OPLC-4*0.75	6~24	10	4*0.75	135	1500	600	1000	300	20D	10D
oPLC-2*1.0	6~24	10	2*1.0	130	1500	600	1000	300	20D	10D
OPLC-4*1.0	6-~24	12	4*1.0	150	1500	600	1000	300	20D	10D
OPLC-2*1.5	6~24	12	2*1.5	140	1500	600	1000	300	20D	10D
OPLC-4*1.5	6~24	12	4*1.5	160	1500	600	1000	300	20D	10D
OPLC-2*2.5	6~-24	12	2*2.5	150	1500	600	1000	300	20D	10D
OPLC-4*2.5	6-~24	14.5	4*2.5	180	1500	600	1000	300	20D	10D

Product Image

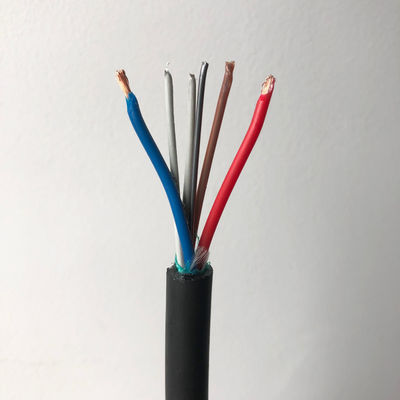

G652D 6 8 Core Photoelectric Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC 1

Application

Used for outdoor distribution box to the building's pipeline,overhead,buried.
Used in optical communication equipment room,
Used for tail fiber and jump in line.
Used for buildings surrounding into cable.

Packing&Delivery

1/2/3/4/km in one wooden drum,deliver days:5-8work days

G652D 6 8 Core Photoelectric Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC 2

G652D 6 8 Core Photoelectric Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC 3

FAQ

Are you a trading company or manufacturer?
We are a manufacturer with 10 years of experience, specializing in the research, development, and production of fiber optic cables, drop cables, patch cords, and more. Our factory is located in Guangzhou—welcome to visit us!
What about product quality?
Every fiber is tested before delivery to ensure quality. After price confirmation, you can request free samples to check our products.
Do you accept small orders?
Yes, small orders are welcome. We support new customer projects because business often starts small.
What is the delivery time?
Typically 3–7 working days, depending on order quantity. We will arrange your goods as soon as possible after payment.
Do you provide OEM services?
Yes, OEM is available. We can print your logo on the products, and we are open to any customization ideas you have.
