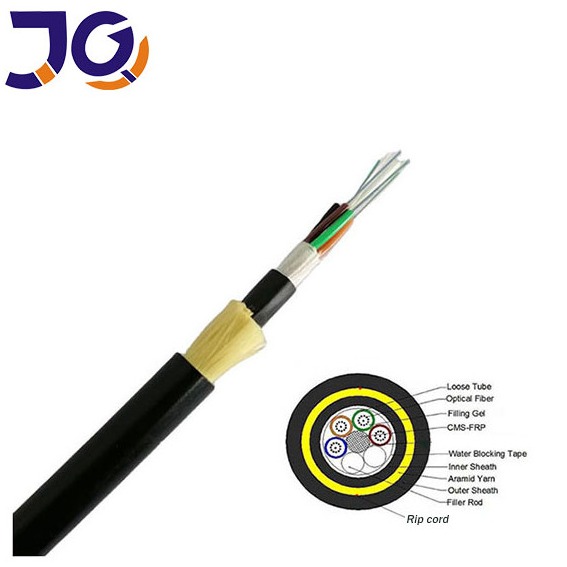

4/8/12 Core ASU Fiber Optic Cable | Mini ADSS Self-Supporting Cable for 80-150M Span
Pessoa de Contato : JQ CABLE
Número de telefone : +8618122383351
Whatsapp : +8618122383351
Quantidade de ordem mínima : | 1 quilômetro | Detalhes da embalagem : | Tambor de madeira |
---|---|---|---|
Tempo de entrega : | 2-5 dias | Termos de pagamento : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Habilidade da fonte : | 8000 quilômetros por mês |
Lugar de origem: | Guangdong , China | Marca: | JQ or OEM/Customize |
---|---|---|---|
Certificação: | CE/ISO9001/RoHS/FCC | Número do modelo: | ADSS-4C/12FC/24C/48C/96C/144C |
Informação detalhada |
|||
Número do modelo: | ADSS-144B1 | Tipo: | Cabo de fibra óptica ao ar livre |
---|---|---|---|
Lugar de origem: | Guangdong, China | Número de condutores: | ≥ 10 |
Tipo de fibra: | G652D/G657A1/G657A2/OM1/OM2/OM3/OM4 | Comprimento: | Conforme necessário |
Cor: | Preto/personalizado | Membro da força: | Fio Aramid |
Colete:: | Capa de PE duplo | Material de tubo solto: | PBT |
Bainha externa: | PE/MDPE/HDPE ou conforme pedido | Pacote: | Tambor de madeira/personalizado |
Aplicativo: | Aéreas, aéreas | OEM: | Disponível |
Span: | 50m-1000m | Certificação: | CE/ROHS/ISO9001 |
Atenuação da fibra: | ≤0.4dB/km | número de força: | FRP, Yevlar Aramid Yarn |
Embalagem: | Tambor de caixa | Modelo do cabo: | Revestimento dobro/único revestimento |
Temperatura: | -40 ℃ a +70 ℃ | Material de membro da força: | Fios de fibras de polietileno |
Comprimento do tambor: | 5 km/tambor | Número de condutores: | 12core |
Amostra: | Livre | Material de bainha: | PE ou personalizado/hdpe/mdpe |
Temperatura operacional: | -20 ℃ ~+60 ℃ | Bainha do cabo: | Pe |
METERALL TUBO: | PBT | Membro da força: | FRP, Yevlar Aramid Yarn |
Essencial: | 48/96/144 Núcores | ||
Destacar: | ADSS fiber optic cable 96 core,outdoor aerial ADSS cable,non-armored double jacket fiber optic cable |
Descrição de produto
ADSS Cable Structure and Design
ADSS cable adopts a loose tube stranded construction for reliable fiber protection. The optical fibers, 250μm, are housed in loose tubes made from high-modulus plastic, providing excellent mechanical strength and durability.
Each tube is filled with a water-blocking gel, preventing moisture ingress and protecting fibers from long-term water damage. The tubes and fillers are stranded around a central FRP (Fiber Reinforced Plastic) strength member, creating a compact and round cable core that is completely non-metallic, safe for use near power lines.
The cable core is filled with filling compound for additional water blocking, then covered with a thin PE (polyethylene) inner sheath to provide a smooth and stable structure. A stranded layer of aramid yarns is applied over the inner sheath, offering outstanding tensile strength and resistance to mechanical stress. Finally, the cable is completed with either a PE outer sheath for general outdoor use or an AT (anti-tracking) outer sheath for installation in high-voltage environments (≥110 kV).
Additional Benefits
Dielectric Design: No metallic elements, eliminating grounding requirements.
Long Service Life: Excellent UV resistance and weatherproof performance.
Lightweight and Easy to Install: Self-supporting design reduces installation cost and time.
Customizable: Available in various fiber counts (up to 288 cores) and sheath materials to suit different span lengths and project needs.

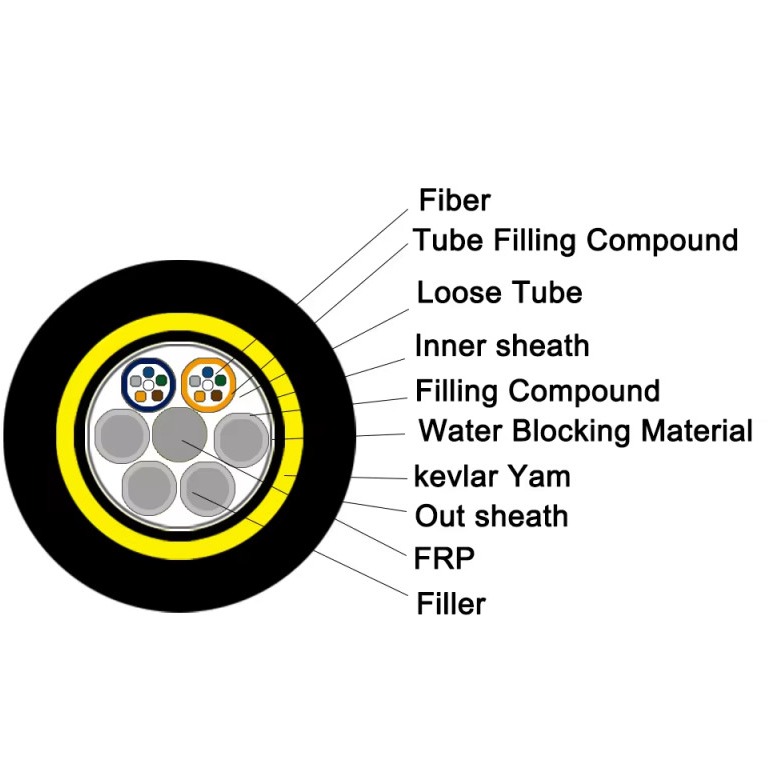

Cable Structure
PE Outer Jacket: Double-jacket design for enhanced durability and weather resistance
FRP Central Strength Member: Provides stable support and maintains cable shape
Rip Cord: Easy and quick sheath removal during installation
Fiber Jelly Filling: Water-blocking compound for moisture protection
Loose Tube: Holds fibers securely and allows free movement to minimize stress
Optical Fibers: High-quality single-mode or multi-mode fibers
Aramid Yarns: High tensile strength to withstand mechanical load
Key Characteristics
Low Attenuation and Dispersion: Stable transmission performance even under changing environments
Strong Mechanical Properties: Withstands tension, crush, and impact for reliable long-term use
Excellent Flexibility: Good bending radius, easy to route and install
Compact Design: Small outer diameter, lightweight, and space-saving construction
Application:
* The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed.
* For overhead power lines under 110kV, PE outer sheath is applied.
* For power lines equal to or over 110kV, AT outer sheath is applied.
Specification:
Company:
WHY CHOOSE US:
Certification:
FAQ
1. Who Are We
We are a professional fiber optic cable manufacturer based in Guangdong China since 2017 Our products are exported to Africa South America Western Europe the Middle East Southeast Asia and South Asia We have a team of 11 to 50 experienced staff
2. How Do We Ensure Quality
Pre production samples are provided for approval before mass production
Every order undergoes strict final inspection before shipment
3. What Can You Buy From Us
Fiber Optic Cable FTTH Drop Cable Indoor and Outdoor Communication Cables and related accessories
4. What Services Do We Offer
Delivery Terms: FOB EXW
Payment Options: T T L C D P D A Credit Card PayPal Western Union Cash
Currencies: USD CNY
Languages: English Chinese
