24 48 Core Underwater Armored Fiber Optic Cable GYTA33 GYFTY33 Stranded Loose Tube

contacto

24 48 Core Underwater Armored Fiber Optic Cable GYTA33 GYFTY33 Stranded Loose Tube

Quantidade de ordem mínima :	1 km	Detalhes da embalagem :	Tambor de madeira
Tempo de entrega :	5-8 dias úteis	Termos de pagamento :	L/C, T/T, Western Union
Habilidade da fonte :	4500KM pelo mês

Lugar de origem:	Guangzhou, China	Marca:	JQ/OEM/Customize
Certificação:	ISO9001 ROHS CE FCC SDOC	Número do modelo:	GYTA33

Informação detalhada
Tipo de fibra:	G652D/G657A1/G657A2/OM1/OM2/OM3/OM4	Cor:	Preto ou alaranjado ou personalizado
Jaqueta:	PE, MDPE, LSZH, PVC, HDPE	Contagem de fibras:	4-72 núcleos
Nome do produto:	Cabo blindado de tubo solto encalhado	Comprimento:	2 km ou comprimento personalizado
Instalação:	Aérea e Duto	OEM:	Disponível
Destacar:	24 core underwater armored fiber optic cable , 48 core stranded loose tube fiber cable , GYTA33 underground fiber optic cable

Descrição de produto

Product: Submarine Optical Fiber Cable (GYFTY33)

Overview The GYFTY33 is a heavy-duty, water-proof fiber optic cable based on the GYFTY structure. It is engineered with multi-layer protection to ensure superior waterproofing and resistance to mechanical crushing (anti-extrusion).

Structural Composition (Inside-Out)

Core: GYFTY fiber optic cable base.
Moisture Barrier: Longitudinal aluminum tape coating.
Inner Sheath: Extruded Polyethylene (PE) layer.
Armoring: Single or double layer of thin round steel wire (wrapped longitudinally).
Outer Sheath: Final extruded Polyethylene (PE) protective layer.

Key Features

Enhanced Waterproofing: Dual protection via aluminum tape and PE sheathing.
High Mechanical Strength: Round steel wire armor provides excellent anti-extrusion and tensile strength for underwater or harsh environments.

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Technical Parameters

item	value
Model Number	GYTA33
Type	Outdoor Fiber Optic Cable
Place of Origin	Guangdong,China
Brand Name	jiqian
Number of Conductors	≥ 10
Fiber count	2-288 Cores
Fiber Type	G652D Single mode or as your request
Central strength member	steel wire
Armoured	Al tape
Outer Sheath	PE
Cable Structure	Multi-Loose Tube Aluminum Tape armor
Color	Black or as your need
Application	Direct burial, underground,sea
Certification	CE/ROHS/ISO9001 /ANATEL

Note : This datasheet can only be a reference, but not a supplement to the contract.

Please contact our sales people for more detailed information

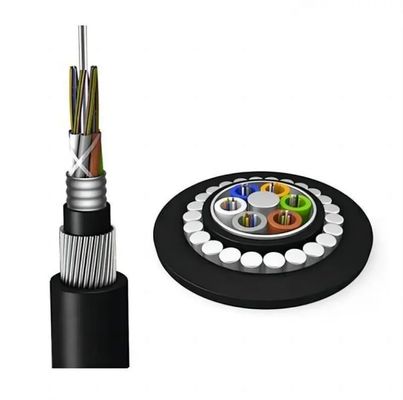

Product Construction

24 48 Core Underwater Armored Fiber Optic Cable GYTA33 GYFTY33 Stranded Loose Tube 0

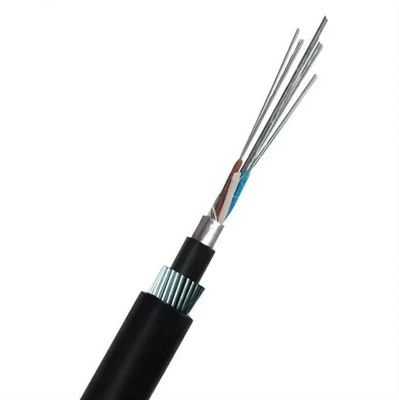

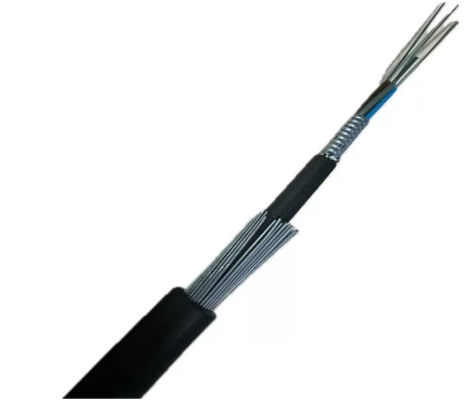

Cable Picture

24 48 Core Underwater Armored Fiber Optic Cable GYTA33 GYFTY33 Stranded Loose Tube 1

24 48 Core Underwater Armored Fiber Optic Cable GYTA33 GYFTY33 Stranded Loose Tube 2

24 48 Core Underwater Armored Fiber Optic Cable GYTA33 GYFTY33 Stranded Loose Tube 3

Application

Suitable for directly buired laying or Underwater method

24 48 Core Underwater Armored Fiber Optic Cable GYTA33 GYFTY33 Stranded Loose Tube 4

Related-products: GYTA53

24 48 Core Underwater Armored Fiber Optic Cable GYTA33 GYFTY33 Stranded Loose Tube 5

Packing

1/2/3/4km or customized length export wooden drum

professional, environmentally friendly, convenient and efficient packaging services will be provided.

24 48 Core Underwater Armored Fiber Optic Cable GYTA33 GYFTY33 Stranded Loose Tube 6

24 48 Core Underwater Armored Fiber Optic Cable GYTA33 GYFTY33 Stranded Loose Tube 7

24 48 Core Underwater Armored Fiber Optic Cable GYTA33 GYFTY33 Stranded Loose Tube 8

1. Factory Directly Supply Price.

2. Life Time Warranty:More 25years

3. Fastest Delivery Time: 1 days for Samples, 3-15 days for bulk production.

4. 100% test before shipping.

5. OEM/ODM is available.

6. Professional manufacturer. Welcome to visit our factory!

24 48 Core Underwater Armored Fiber Optic Cable GYTA33 GYFTY33 Stranded Loose Tube 9

We Support OEM and Customize products.

Welcome to your inquiry! Welcome to visit our facotry!

Contact me at +86 18122384553 to get free sample.
