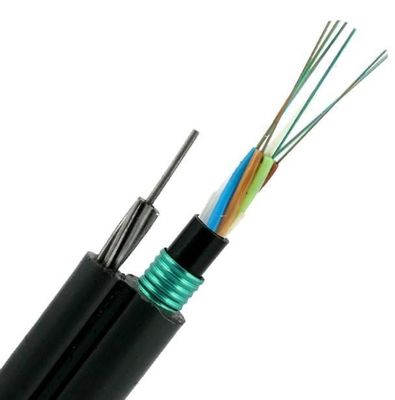

Name: GYTC8S Figure 8 Self Supporting Fiber Optic Cable 24 48 Core Aerial Steel Messenger Overhead
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GYTC8S/GYFTC8S
Price: 480.00 USD
Availability: InStock

GYTC8S Figure 8 Self Supporting Fiber Optic Cable 24 48 Core Aerial Steel Messenger Overhead

1 quilômetro

MOQ

Inquiry for price

preço

Características Galeria Descrição de produto Peça umas citações

Características

Especificações

Número do modelo: GYTC8S-24 48Núcleo

Tipo de fibra: G652D Modo único ou como seu pedido

Jaqueta: PE, MDPE, LSZH, PVC, HDPE

Membro da Força Central: fio de aço

armadura: Fita de aço

Pacote: Tambor de madeira/personalizado

Aplicativo: Telecomunicações/rede

Fibras Não: 2-12 núcleos de fibra

Destacar:

24 core figure 8 fiber optic cable

48 core aerial steel messenger cable

self supporting overhead fiber optic cable

Informação básica

Lugar de origem: Cantão, China

Marca: JQ/OEM/Customize

Certificação: CE/ISO9001/RoHS/FCC

Número do modelo: GYTC8S/GYFTC8S

Condições de Pagamento e Envio

Detalhes da embalagem: Tambor de madeira ou personalizado

Tempo de entrega: 2-5 dias

Termos de pagamento: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Habilidade da fonte: 8000 quilômetros por mês

Galeria

GYTC8S Figure 8 Self Supporting Fiber Optic Cable 24 48 Core Aerial Steel Messenger Overhead

Descrição de produto

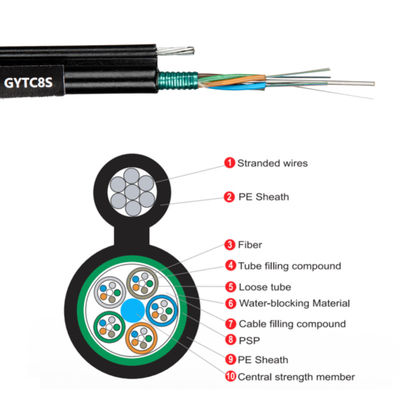

GYTC8S Aerial Fiber Optic Cable Steel Messenger Armored Outdoor Cable

Product Introduction:
GYTC8S is a self-supporting aerial fiber optic cable with stranded loose tube structure, designed for outdoor communication with strong mechanical and environmental performance.

Key Features:

Steel messenger wire for self-supporting installation
Corrugated steel tape for enhanced crush resistance
PE outer sheath for weather protection
Supports 1–144 fiber cores
High tensile strength for long-span use

Applications:

Outdoor aerial installations
Long-distance communication lines
LAN and data networks
Subscriber access systems
CATV and telecom networks

Product Parameters:

Model

fiber cores

OD (outer dia.)

Weight

kg/km

Tensile

Strength Long

/Short Term

Crush Resistance

Long/Short Term N

/100mm

Bending Radius

Static

/Dynamic mm

GYTC8S

12-288

7-20mm

70-300

3500/7000N

300/1000

15D/30D

Specification:

item	value
Model Number	GYTC8S
Type	Outdoor Fiber Optic Cable
Place of Origin	Guangdong,China
Brand Name	jiqian
Structure	Multi loose tube
Number of Conductors	≥ 10
Fiber count	2-144 Cores
Fiber Type	G652D Single mode or as your request
Central strength member	Steel wire
Loose tube	Jelly filled
Loose tube	PBT
Jacket Sheath	PE
Color	Black or as your need
Package	Plywood Reel/customized
Application	Aerial,Overhead
operating temperature	-40 to +70
Certification	CE/ROHS/ISO9001

Optical Characteristics:

	G.655	50/125μm	62.5/125μm
G.652	G.655	50/125μm	62.5/125μm
Attenuation	'@850nm			≤3.0 dB/km
(+20℃)	'@1300nm			≤1.0 dB/km
	'@1310nm	≤0.34 dB/km	≤0.40 dB/km
	'@1550nm	≤0.21 dB/km	≤0.23 dB/km
	'@850nm			≥500 MHz·km
	'@1300nm			≥1000 MHz·km
Numerical Aperture				0.200±0.015NA

GYTC8S Figure 8 Self Supporting Fiber Optic Cable 24 48 Core Aerial Steel Messenger Overhead 0

GYTC8S Figure 8 Self Supporting Fiber Optic Cable 24 48 Core Aerial Steel Messenger Overhead 1

Certification:

GYTC8S Figure 8 Self Supporting Fiber Optic Cable 24 48 Core Aerial Steel Messenger Overhead 2

GYTC8S Fiber Optic Cable FAQ

Q1: What is GYTC8S cable used for?
A: It is used for outdoor aerial installations in telecom and data transmission networks.

Q2: What makes GYTC8S self-supporting?
A: It has a built-in steel messenger wire for aerial installation without extra support.

Q3: How many fiber cores does it support?
A: It supports from 1 to 144 fiber cores.

Q4: Is GYTC8S suitable for harsh environments?
A: Yes, it has steel tape armor and PE sheath for strong protection.

Q5: Where is GYTC8S commonly applied?
A: It is used in long-distance communication, LAN, CATV, and access networks.
