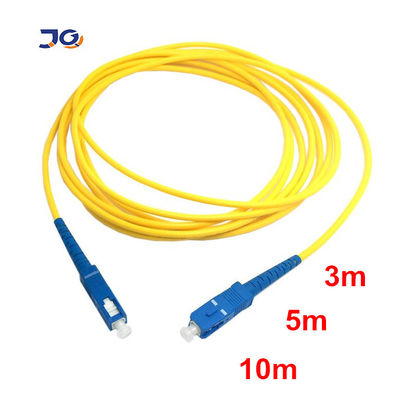

SC APC to SC UPC Fiber Optic Patch Cord 3mm LSZH Single Mode Optical Cable 1m 2m 3m FTTH Jumper

50 unidades
MOQ
Inquiry for price
preço
SC APC to SC UPC Fiber Optic Patch Cord 3mm LSZH Single Mode Optical Cable 1m 2m 3m FTTH Jumper
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Material: PVC/LSZH
Cor: amarelo
Item: patch cord de fibra óptica
Repetibilidade: ≤ 0,2dB
Contagem de fibras: Simplex ou Duplex
Controle de qualidade: Teste 100% antes do envio
Tipo de conector: SC/APC-SC/UPC
Nome do produto: Patch Cord de Fibra Óptica
Destacar:

SC APC to SC UPC fiber optic patch cord

,

LSZH single mode optical cable

,

FTTH jumper with warranty
Informação básica
Lugar de origem: Cantão, China
Marca: JQ/OEM/Customize
Certificação: ISO 9001,ROHS CE-EMC FCC SDOC
Número do modelo: Patch Cord SM-SX
Condições de Pagamento e Envio
Detalhes da embalagem: 100 peças em uma caixa de desenho animado de exportação
Tempo de entrega: 5-8 dias úteis
Termos de pagamento: Western Union, T/T, L/C, Alipay
Habilidade da fonte: 5000 unidades por dia
Descrição de produto

SC APC to SC UPC Fiber Patch Cord 1m 2m 3m Single Mode 9/125µm LSZH Optical Cable



Product Features

  • Low insertion loss and high return loss for stable signal transmission.
  • Factory terminated and 100% tested for reliable performance.
  • Excellent repeatability and interchangeability for consistent connections.
  • Durable tight-buffer fiber with strong environmental adaptability.



Applications

  • FTTH and FTTx fiber optic networks.
  • Data centers and telecom equipment connections.
  • LAN, CATV, and broadband communication systems.



Optical Characteristics



Parameter



PC



UPC



APC



Multi-mode



Insertion loss



≤0.3dB



≤0.3dB



≤0.3dB



≤0.3dB



Return loss



≥40dB



≥50dB



≥60dB



≥35dB



Exchange



≤0.2dB



Repeatability



≤0.2dB



Servicelife



>1000times



Tensile strength



>10kg



Temperature range



-40°C to +85°C



Technical Data



Type

Standard,Master



Style

LC,SC,ST,FC.MU,DIN,MPO,SC/APC,

FC/APC,LC/APC.MU/APC



Fiber

Singlemode/Multimode

50/125,62.5/125(Multi mode) OM2&OM1

50/125,10G(Multi mode)OM3



Cable

Simplex,Duplex

outer diameter:3.0mm,20mm,0.9mm

PVC or LSZH



Polishing Manner

UPC,SPC,APC(8°&6°)



Insertion Loss

≤0.1dB (For Single mode Master)

≤0.25dB (For Single mode Standard)

≤0.25dB (ForMultimode)

Tested by JDSRM3750

Return Loss

(Single mode)

UPC≥50dB

SPC≥55dB

APC≥60dB (typ.65dB)

Tested by JDSRM3750



Repeat ability

≤0.1dB



Operating temperature

-400 C° to 850 C°



Geometry Requirement

(Single mode)

Ferrule Endface Radius

7mm≤R≤12mm (For APC)

10mm≤R≤25mm (For Standard)

Apex Offset≤30μm (For Master)

Apex Offset≤50μm (For Standard)

Under cut-50nm SU≤50nm

Tested by DORCZX-1

Connector Type

SC APC to SC UPC Fiber Optic Patch Cord 3mm LSZH Single Mode Optical Cable 1m 2m 3m FTTH Jumper 0



SC APC to SC UPC Fiber Optic Patch Cord 3mm LSZH Single Mode Optical Cable 1m 2m 3m FTTH Jumper 1





Recommed Products



SC APC to SC UPC Fiber Optic Patch Cord 3mm LSZH Single Mode Optical Cable 1m 2m 3m FTTH Jumper 2



Packing & Delivery



Packing:100/Pcs in one Carton box or OEM.

Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc

Deliverty: 3-5 days after payment dowm,According to ur order quantity.

SC APC to SC UPC Fiber Optic Patch Cord 3mm LSZH Single Mode Optical Cable 1m 2m 3m FTTH Jumper 3

SC APC to SC UPC Fiber Optic Patch Cord 3mm LSZH Single Mode Optical Cable 1m 2m 3m FTTH Jumper 4

SC APC to SC UPC Fiber Optic Patch Cord 3mm LSZH Single Mode Optical Cable 1m 2m 3m FTTH Jumper 5







SC APC to SC UPC Fiber Optic Patch Cord 3mm LSZH Single Mode Optical Cable 1m 2m 3m FTTH Jumper 6





Factory Pictures

SC APC to SC UPC Fiber Optic Patch Cord 3mm LSZH Single Mode Optical Cable 1m 2m 3m FTTH Jumper 7
FAQ


Q: What fiber type does this patch cord use?
A: It uses 9/125µm single-mode optical fiber.



Q: What connector types are included?
A: The cable features SC/APC to SC/UPC connectors.



Q: What lengths are available?
A: Common lengths include 1m, 2m, and 3m, with custom lengths available.



Q: Is the cable factory tested?
A: Yes, each patch cord is tested for insertion loss and return loss.



Q: What applications is this patch cord suitable for?
A: It is widely used in FTTH, data centers, LAN, and telecom networks.
