Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
contacto

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center

Quantidade de ordem mínima : 50pcs Detalhes da embalagem : Bolsa pe ou caixa de plástico e caixa de desenhos animados
Tempo de entrega : 3-5 dias de trabalho Termos de pagamento : Western Union, T/T, L/C.
Habilidade da fonte : 30000pcs por dia
Lugar de origem: Guangzhou, China Marca: JQ/OEM/Customize
Certificação: ISO 9001,ROHS CE-EMC FCC SDOC Número do modelo: Pigtail de fibra óptica

Informação detalhada
Aplicativo: FTTH FTTB FTTX Network Tipo de conector: SC UPC
Comprimento: 3 medidores ou personalizado Cor: personalizado
Diâmetro do cabo: 0,9/2.0/3,0mm FACA END-FILHA FERRUE: PC/UPC/APC
Material da jaqueta: PVC/LSZH/PE Nome do produto: Pigtail de fibra óptica
Comprimento de onda do transmissor: 1310nm Item: Cordão de ligação de fibras ópticas
Tipo de fibra: G.652D/G.657A1/G.657A2 Rede: 4g, 5g
Fibras Não: 1 (Simplex) Produtos: OM4 SC-SC 12Core Fiber Optic Patch Cable
Contagem de fibras: 9/125UM, 50/125UM, 62,5/125U Perda de retorno: > 50 dB (UPC) /> 60 dB (APC)
Diâmetro do cabo: 2.0 3,0 mm Ferrule: APC
Tipo polonês: UPC para UPC Comprimento do cabo: 1m/2m/3m/5m/10m/personalizado
Modo de fibra: Modo único Tipo de cabo: Modo único/modo multi
Número de núcleos: Núcleo único Comprimento de onda: 1260-1650nm
Conectores opcionais: LC/SC/FC/ST Interno: Cerâmica
Polimento: PC ou UPC Características: Elevado desempenho em IL&RL
Número de condutores: 1 Jaqueta: PVC/LSZH
Destacar:

12 core fiber optic pigtail

,

SC UPC multimode pigtail

,

FTTH fiber optic patch cord

Descrição de produto

FTTH FTTB 12 Core SC UPC 0.9mm Multimode Fiber Optic Pigtail



Product Description
Our fiber optic pigtails are essential for optical network connections, featuring pre-terminated connectors for quick and reliable installation. Available in 4, 6, 8, 12, 24, and 48 cores with single-mode or multimode options, they are ideal for patch panels, cross-connects, and equipment jumper connections. Each pigtail is manufactured with high-quality riser-grade cable and factory-tested to meet or exceed Telcordia standards, ensuring stable performance and low insertion loss.



Key Features

  • Multiple connector types: SC, LC, FC, ST, MU, MT-RJ, E2000

  • Polishing options: PC, APC, UPC, SPC

  • Fiber types: Single-mode (9/125) or Multimode (50/125, 62.5/125)

  • Cable diameters: Φ0.9mm, Φ2.0mm, Φ3.0mm

  • Configurations: Bunch, ribbon fan-out, simplex, duplex

  • Jacket materials: PVC or LSZH, with OM1, OM2, OM3 options

  • Excellent durability, low insertion loss, and full interchangeability

  • Customizable lengths, connectors, and fiber counts available

Applications

  • FTTH (Fiber to the Home) and FTTB deployments

  • LAN and enterprise network connections

  • CATV and CCTV systems

  • High-speed data transmission

  • Fiber optic sensing and monitoring systems




Optical Characteristics

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 oM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable oD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
nti-tensile Force (N) >70
remperature Range (c) -40r+80





Detailed Image

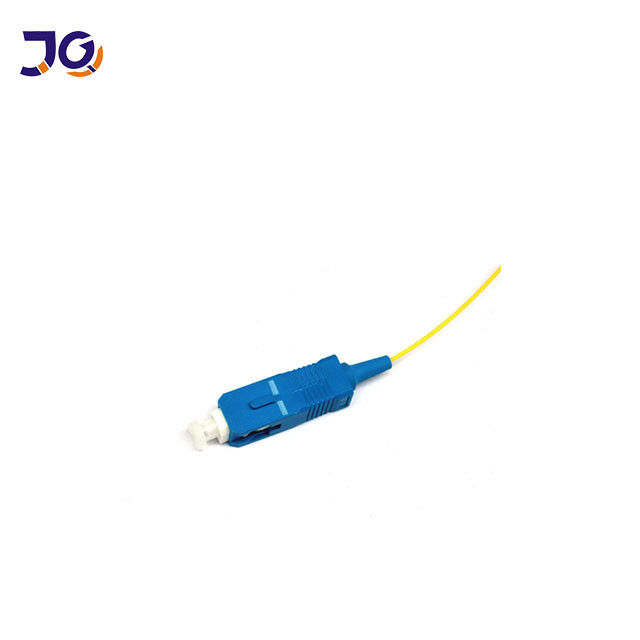

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 0

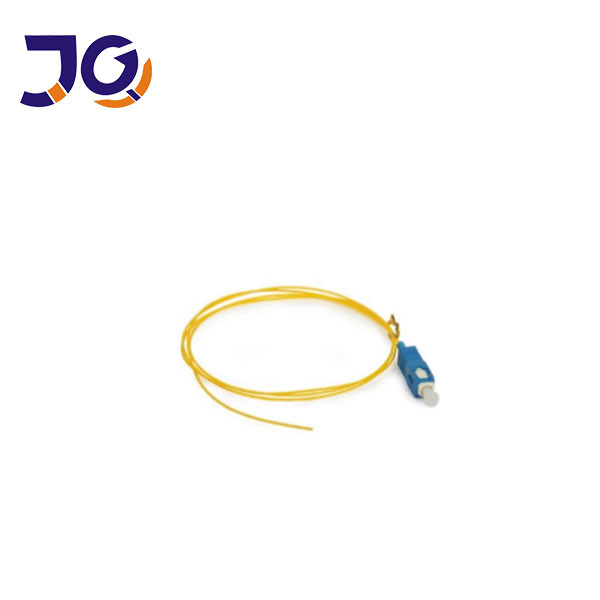

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 1

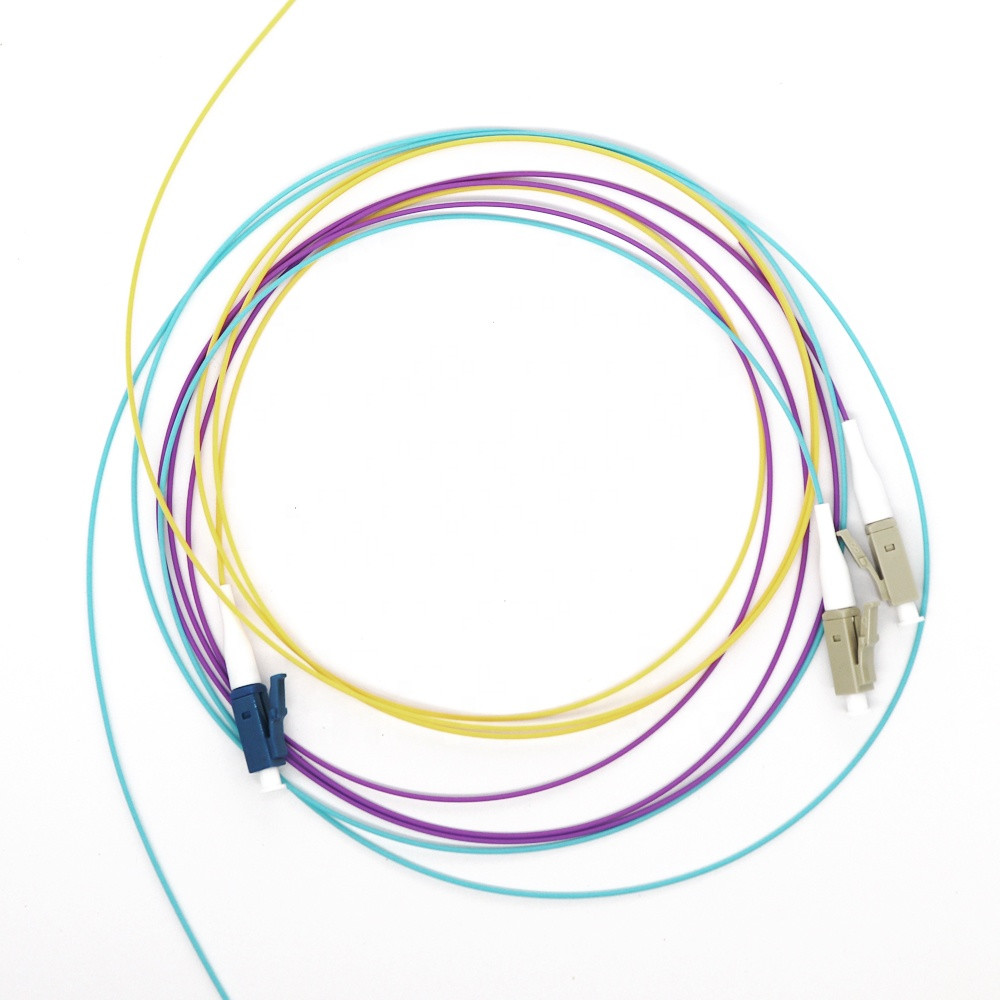

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 2

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 3



FAQ – Frequently Asked Questions



1. Are you the actual manufacturer?
Yes, we are a direct manufacturer with over 10 years of production experience.



2. Do you accept small orders?
Absolutely. Small orders are welcome, and we fully support new projects since most businesses start small.



3. What is your product warranty?
We provide a 25-year warranty for all fiber optic cables.



4. What is your delivery time?
Typically, we ship within 3–5 working days, depending on order quantity.



5. What is your annual production capacity?

  • Outdoor / Indoor Fiber Optic Cable: 6,000,000 KM per year

  • FTTH / FTTX / FTTA Cable: 6,000,000 KM per year

  • Patch Cords & Pigtails: 12,400,000 pieces per year

6. Can you offer customized products and logo printing?
Yes, we provide OEM & ODM services. Just send us your design or specifications.
