GYTC8S Figure 8 Fiber Optic Cable 48/96 Core Outdoor Singlemode G652D
GYTC8S Figure 8 Fiber Optic Cable 48/96 Core Outdoor Singlemode G652D
GYTC8S Figure 8 Fiber Optic Cable 48/96 Core Outdoor Singlemode G652D GYTC8S Figure 8 Fiber Optic Cable 48/96 Core Outdoor Singlemode G652D GYTC8S Figure 8 Fiber Optic Cable 48/96 Core Outdoor Singlemode G652D GYTC8S Figure 8 Fiber Optic Cable 48/96 Core Outdoor Singlemode G652D
contacto

GYTC8S Figure 8 Fiber Optic Cable 48/96 Core Outdoor Singlemode G652D

Quantidade de ordem mínima : 1 quilômetro Detalhes da embalagem : Tambor de madeira
Tempo de entrega : 2-5 dias Termos de pagamento : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Habilidade da fonte : 8000 quilômetros por mês
Lugar de origem: Guangdong, China Marca: JQ/OEM/Customize
Certificação: CE/ISO9001/RoHS/FCC Número do modelo: Gytc8s

Informação detalhada
Número do modelo: GYTC8S-48CORE Tipo: Cabo de fibra óptica ao ar livre
Lugar de origem: Guangdong, China Tipo de fibra: G652D Modo único ou como seu pedido
Cor: personalizado Jaqueta: PE, MDPE, LSZH, PVC, HDPE
Número de condutor: 1 ou 2 ou 4 ou 6 ou 8 ou 12
Destacar:

Figure 8 fiber optic cable 48 core

,

Outdoor singlemode fiber cable G652D

,

96 core figure 8 optical cable

Descrição de produto

GYTC8S Optical Fiber Cable

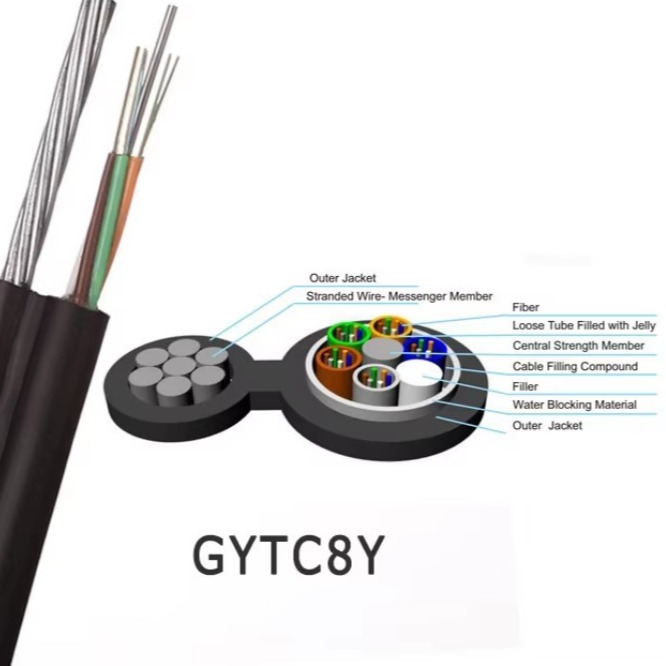

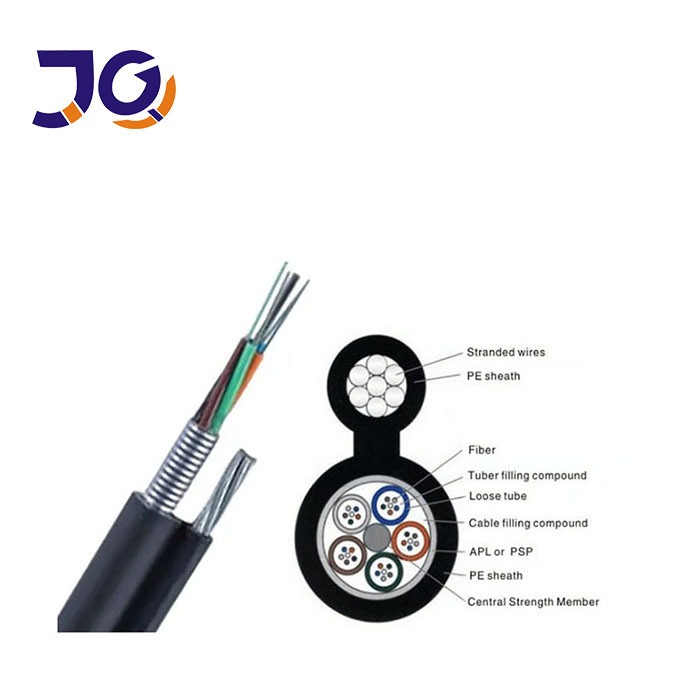

A self-supporting aerial cable with 1–144 fibers, stranded loose tube design, steel messenger, corrugated steel armor, and UV-resistant PE sheath. Water-blocking gel protects fibers, while the central steel member ensures high tensile strength. Ideal for long-distance telecom, FTTH, LAN/WAN, and power line communication.



Applications:

  • Outdoor aerial and long-span installations

  • Backbone and metro network transmission

  • LAN, WAN, and data center connectivity

  • FTTH/FTTx subscriber access

  • Junction and distribution networks

  • CATV, broadband, and computer networks

Product Parameters:

Model fiber cores OD (outer dia.)

Weight

kg/km

Tensile

Strength Long

/Short Term

Crush Resistance

Long/Short Term N

/100mm

Bending Radius

Static

/Dynamic mm
GYTC8S 12-288 7-20mm 70-300 3500/7000N 300/1000 15D/30D


Specification:

item value
Model Number GYTC8S
Type Outdoor Fiber Optic Cable
Place of Origin Guangdong,China
Brand Name jiqian
Structure Multi loose tube
Number of Conductors ≥ 10
Fiber count 2-144 Cores
Fiber Type G652D Single mode or as your request
Central strength member Steel wire
Loose tube Jelly filled
Loose tube PBT
Jacket Sheath PE
Color Black or as your need
Package Plywood Reel/customized
Application Aerial,Overhead
operating temperature -40 to +70
Certification CE/ROHS/ISO9001



GYTC8S Figure 8 Fiber Optic Cable 48/96 Core Outdoor Singlemode G652D 0

Optical Characteristics:

  G.655 50/125μm 62.5/125μm
G.652
Attenuation '@850nm     ≤3.0 dB/km
(+20℃) '@1300nm     ≤1.0 dB/km
  '@1310nm ≤0.34 dB/km ≤0.40 dB/km
  '@1550nm ≤0.21 dB/km ≤0.23 dB/km
  '@850nm     ≥500 MHz·km
  '@1300nm     ≥1000 MHz·km
Numerical Aperture     0.200±0.015NA



GYTC8S Figure 8 Fiber Optic Cable 48/96 Core Outdoor Singlemode G652D 1

GYTC8S Figure 8 Fiber Optic Cable 48/96 Core Outdoor Singlemode G652D 2

Certification:

GYTC8S Figure 8 Fiber Optic Cable 48/96 Core Outdoor Singlemode G652D 3



FAQ

1. Who are we?
We are a professional fiber optic cable manufacturer based in Guangdong, China, founded in 2017. Our main markets include Africa (33%), South America (17%), Western Europe (17%), the Middle East (17%), Southeast Asia (9%), and South Asia (7%). We have a skilled team of 11–50 employees.



2. How do we ensure product quality?

  • Pre-production samples are provided for confirmation before mass production

  • 100% final inspection is carried out prior to shipment

3. What products do we offer?
Outdoor/indoor fiber optic cables, FTTH drop cables, communication cables, and related accessories.



4. What services are available?

  • Delivery terms: FOB, EXW

  • Payment methods: T/T, L/C, D/P, D/A, Credit Card, PayPal, Western Union, Cash

  • Supported currencies: USD, CNY

  • Supported languages: English, Chinese

5. What is the minimum order quantity (MOQ)?
Our standard MOQ is 1KM, trial orders are welcome.



6. Can I request samples?
Yes, we provide free samples; customers only need to cover the freight cost.



7. Do you offer OEM/ODM service?
Yes, our engineering team supports OEM/ODM customization to meet your project needs.



8. What is your delivery time?
Normally 3–7 working days after order confirmation, depending on quantity.
